The following figures provide a visual representation of the relationships between the classes in the AWT packages.
java.awt, as the mother of all AWT packages, is better represented by two diagrams, one for the graphics classes and one for the component and layout classes.
|
 |
|
| Introduction to the Reference Chapters |  |
AWTError |

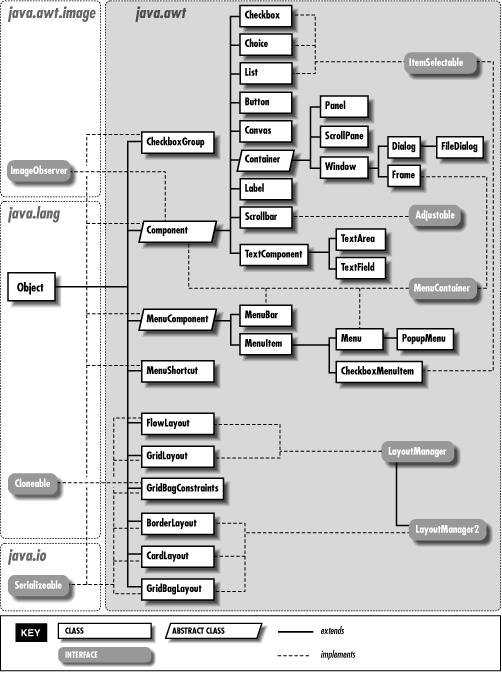

![[Graphic: Figure 18-1]](./figs/awtcomp.gif)

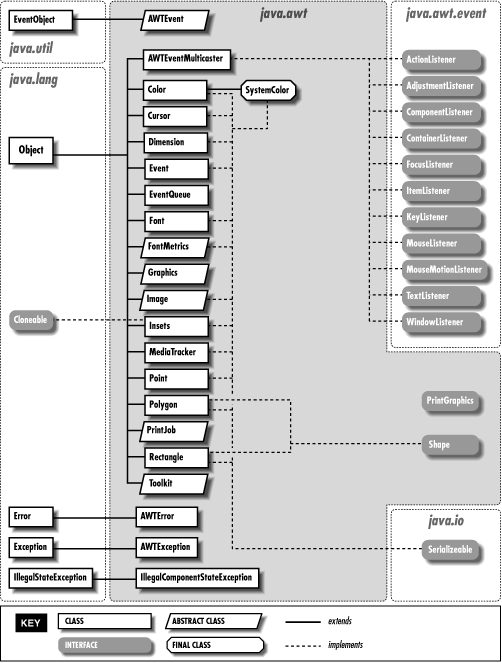

![[Graphic: Figure 18-2]](./figs/awtlayo.gif)

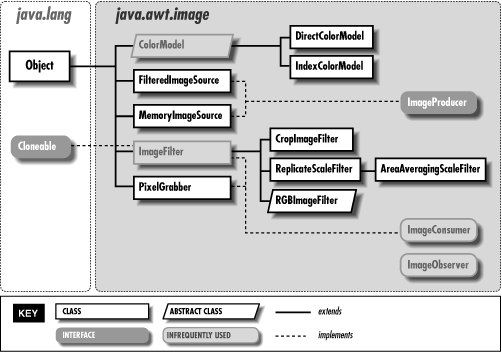

![[Graphic: Figure 18-3]](./figs/awtimag.gif)

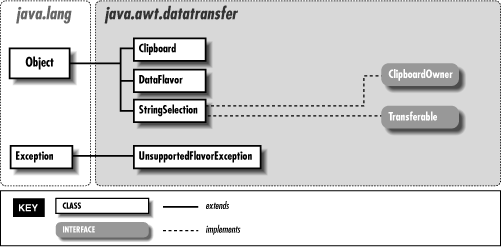

![[Graphic: Figure 18-4]](./figs/awtdata.gif)

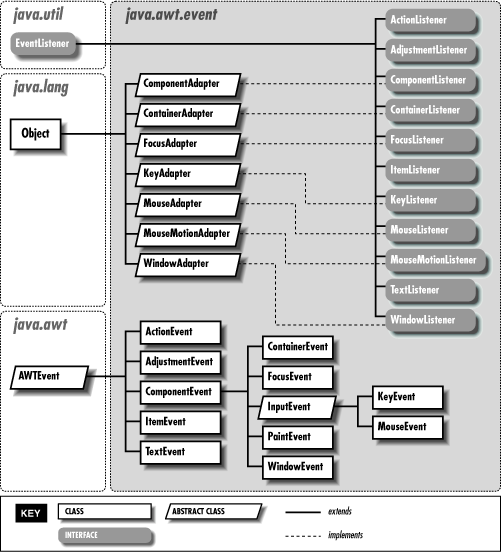

![[Graphic: Figure 18-5]](./figs/awteven.gif)

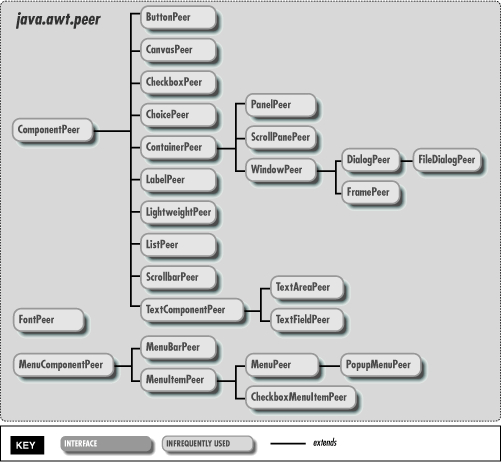

![[Graphic: Figure 18-6]](./figs/awtpeer.gif)

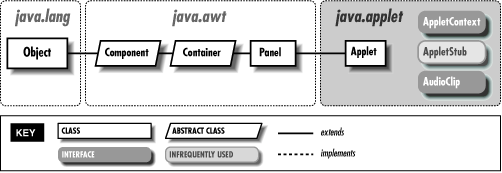

![[Graphic: Figure 18-7]](./figs/awtappl.gif)
