Chapter 20. The java.security.interfaces Package
As its name implies, the java.security.interfaces
package contains only interfaces. These interfaces define methods that provide algorithm-specific
information (such as key values and initialization parameter values)
about DSA and RSA public and private keys. If you are using the RSA
algorithm, for example, and working with a
java.security.PublicKey object, you can cast
that PublicKey to an
RSAPublicKey object and use the RSA-specific
methods defined by RSAPublicKey to query
the key value directly. Figure 20-1 shows the
class hierarchy of
this package.

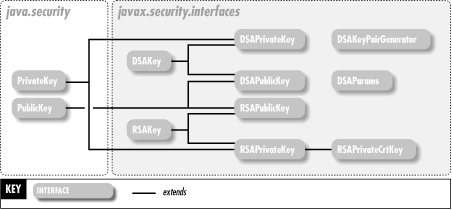

Figure 20-1. The java.security.interfaces package
The java.security.interfaces package was introduced
in Java 1.1. In Java 1.2, the java.security.spec
package is the preferred way for obtaining algorithm-specific
information about keys and algorithm parameters. This package
remains useful in Java 1.2, however, for identifying the type of a
given PublicKey or PrivateKey
object.
The interfaces in this package are typically of interest only to
programmers who are implementing a security provider or
who want to implement cryptographic algorithms themselves. Use of this
package typically requires some familiarity with the mathematics
underlying DSA and RSA public-key cryptography.
| DSAKey | Java 1.1 |
|
|
| java.security.interfaces | PJ1.1(opt) |
This interface defines a method that must be implemented by both public
and private DSA keys.
| public interface DSAKey { |
| // | Public Instance Methods |
| public abstract DSAParams getParams (); | |
| } |
Implementations: DSAPrivateKey, DSAPublicKey
| DSAKeyPairGenerator | Java 1.1 |
|
|
| java.security.interfaces | PJ1.1(opt) |
This interface defines algorithm-specific
KeyPairGenerator initialization methods for DSA
keys. To generate a pair of DSA keys, use the static
getInstance() factory method of
java.security.KeyPairGenerator and specify "DSA" as
the desired algorithm name. If you wish to perform DSA-specific
initialization, cast the returned KeyPairGenerator
to a DSAKeyPairGenerator and call one of the
initialize() methods defined by this interface. Finally, generate the keys by calling
generateKeyPair() on the
KeyPairGenerator.
| public interface DSAKeyPairGenerator { |
| // | Public Instance Methods |
| public abstract void initialize (DSAParams params, java.security.SecureRandom random) throws java.security.InvalidParameterException; | |
| public abstract void initialize (int modlen, boolean genParams, java.security.SecureRandom random) throws java.security.InvalidParameterException; | |
| } |
| DSAParams | Java 1.1 |
|
|
| java.security.interfaces | PJ1.1(opt) |
This interface defines methods for obtaining the DSA parameters
g, p, and q. These methods are useful only if you wish to perform cryptographic
computation yourself. Using these methods requires
a detailed understanding of the mathematics
underlying DSA public-key cryptography.
| public interface DSAParams { |
| // | Public Instance Methods |
| public abstract java.math.BigInteger getG (); | |
| public abstract java.math.BigInteger getP (); | |
| public abstract java.math.BigInteger getQ (); | |
| } |
Implementations: java.security.spec.DSAParameterSpec
Passed To: DSAKeyPairGenerator.initialize()
Returned By: DSAKey.getParams()
| DSAPrivateKey | Java 1.1 |
|
|
| java.security.interfaces | serializable PJ1.1(opt) |
This interface represents a DSA private key and provides direct
access to the underlying key value. If you are working with a private
key you know is a DSA key, you can cast the
PrivateKey to a DSAPrivateKey.
| public interface DSAPrivateKey extends DSAKey, java.security.PrivateKey { |
| // | Public Constants |
| 1.2 | public static final long serialVersionUID ; | =7776497482533790279 |
| // | Public Instance Methods |
| public abstract java.math.BigInteger getX (); | |
| } |
Hierarchy: (DSAPrivateKey(DSAKey,java.security.PrivateKey(java.security.Key(Serializable))))
| DSAPublicKey | Java 1.1 |
|
|
| java.security.interfaces | serializable PJ1.1(opt) |
This interface represents a DSA public key and provides direct
access to the underlying key value. If you are working with a public
key you know is a DSA key, you can cast the
PublicKey to a DSAPublicKey.
| public interface DSAPublicKey extends DSAKey, java.security.PublicKey { |
| // | Public Constants |
| 1.2 | public static final long serialVersionUID ; | =1234526332779022332 |
| // | Public Instance Methods |
| public abstract java.math.BigInteger getY (); | |
| } |
Hierarchy: (DSAPublicKey(DSAKey,java.security.PublicKey(java.security.Key(Serializable))))
| RSAKey | Java 1.3 Beta |
|
|
| java.security.interfaces | |
This is a superinterface for RSAPublicKey and
RSAPrivateKey; it defines a method shared by both
classes. Prior to Java 1.3, the getModulus()
method was defined independently by RSAPublicKey
and RSAPrivateKey.
| public interface RSAKey { |
| // | Public Instance Methods |
| public abstract java.math.BigInteger getModulus (); | |
| } |
Implementations: RSAPrivateKey, RSAPublicKey
| RSAPrivateCrtKey | Java 1.2 |
|
|
| java.security.interfaces | serializable |
This interface extends RSAPrivateKey and provides a
decomposition (based on the Chinese remainder theorem) of the private-key value into the various pieces that comprise it. This interface is
useful only if you plan to implement your own cryptographic
algorithms. To use this interface, you must have a detailed
understanding of the mathematics underlying RSA public-key
cryptography. Given a java.security.PrivateKey
object, you can use the instanceof operator to
determine whether you can safely cast it to an
RSAPrivateCrtKey.
| public interface RSAPrivateCrtKey extends RSAPrivateKey { |
| // | Property Accessor Methods (by property name) |
| public abstract java.math.BigInteger getCrtCoefficient (); | |
| public abstract java.math.BigInteger getPrimeExponentP (); | |
| public abstract java.math.BigInteger getPrimeExponentQ (); | |
| public abstract java.math.BigInteger getPrimeP (); | |
| public abstract java.math.BigInteger getPrimeQ (); | |
| public abstract java.math.BigInteger getPublicExponent (); | |
| } |
Hierarchy: (RSAPrivateCrtKey(RSAPrivateKey(java.security.PrivateKey(java.security.Key(Serializable)),RSAKey)))
| RSAPrivateKey | Java 1.2 |
|
|
| java.security.interfaces | serializable |
This interface represents an RSA private key and provides direct
access to the underlying key values. If you are working with a private
key you know is an RSA key, you can cast the
PrivateKey to an RSAPrivateKey.
| public interface RSAPrivateKey extends java.security.PrivateKey, RSAKey { |
| // | Public Instance Methods |
| public abstract java.math.BigInteger getPrivateExponent (); | |
| } |
Hierarchy: (RSAPrivateKey(java.security.PrivateKey(java.security.Key(Serializable)),RSAKey))
Implementations: RSAPrivateCrtKey
| RSAPublicKey | Java 1.2 |
|
|
| java.security.interfaces | serializable |
This interface represents an RSA public key and provides direct
access to the underlying key values. If you are working with a public
key you know is an RSA key, you can cast the
PublicKey to an RSAPublicKey.
| public interface RSAPublicKey extends java.security.PublicKey, RSAKey { |
| // | Public Instance Methods |
| public abstract java.math.BigInteger getPublicExponent (); | |
| } |
Hierarchy: (RSAPublicKey(java.security.PublicKey(java.security.Key(Serializable)),RSAKey))
 |  |  |
