MuPAD deserves the full support of the Linux community, and if you use mathematics in any way, then MuPAD should find a home on your system.

A Computer Algebra System (CAS) is a software package designed for the symbolic manipulation of mathematical expressions. A CAS should be able to:

perform numerical arithmetic with precision bounded only by the computer's hardware

perform basic calculus: partial and complete differentiation; symbolic and numerical integration

solve differential equations (partial and total)

manipulate power series

simplify algebraic expressions

understand standard functions: exponential, trigonometric, hyperbolic; in particular their derivatives and anti-derivatives, and their power series expansions

have a knowledge of some other functions: hypergeometric, Bessel

manipulate matrices and vectors; basic arithmetic, eigensystems, determinants, matrix decomposition

create two- and three-dimensional graphs

produce output in various forms: TeX/LaTeX, Fortran, C, HTML, PostScript

interact with other software; the CAS should be able to incorporate programs written in other languages

be extended: the CAS should have some programming language built in so that a user can add further functionality

number theoretical functions: primality testing, modular arithmetic, primitive root finding

orthogonal functions: Legendre, Chebyshev, Laguerre

animation of sequences of graphs

recurrence relation solving

MuPAD is a CAS developed at the University of Paderborn by a team headed by Benno Fuchssteiner. Although it may not have quite the range and pizazz of its better known rivals Maple and Mathematica, it is equal to them in depth, and in some ways even surpasses them. Its name is short for “MultiProcessing Algebra Data Tool”, and as we shall see, is a fairly good descriptor of it.

In contrast to the major commercial CASs, MuPAD is designed to be an open system—anybody can extend and add to it. The current version is 1.4, and was released in March 1998.

Let us suppose that you have installed MuPAD on your system. (I will discuss installation later.) What now?

You can start MuPAD in two ways: in a console, using the command

mupad

or, if you are running X, the command

xmupadwill provide a graphical interface. If you have installed MuPAD correctly, both of these commands are, in fact, shell scripts which define certain environment variables and then call the actual executables.

Let us suppose you have chosen the latter. You will obtain a window something like that shown in Figure 1.

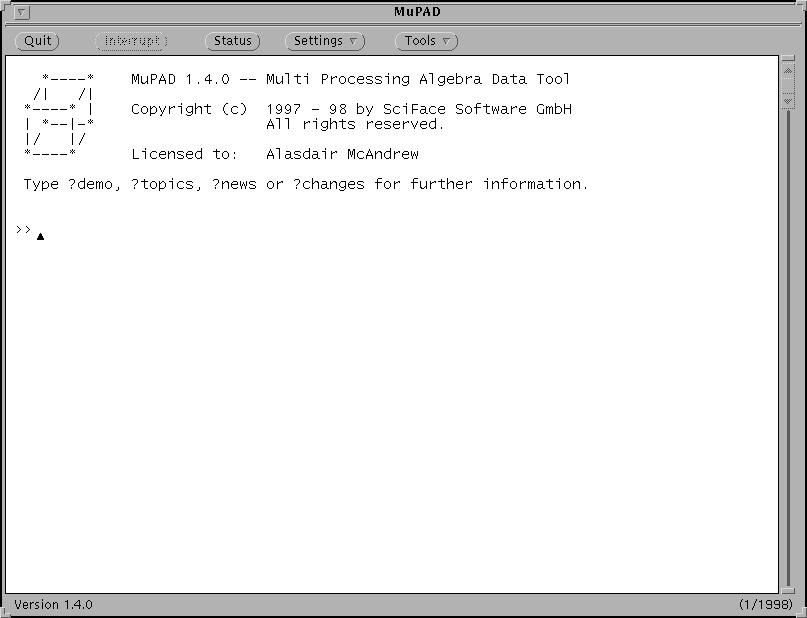

**Figure 1. The
Initial MuPAD Window**

Notice the OpenWindows look and feel. As yet the MuPAD team has not released a Linux binary using Athena or Motif widgets, although one is in preparation. MuPAD was designed to work with the OpenWindows widget set, and as such behaves best if you use an OpenLook window manager. Many of its subsidiary windows do not have their own close or exit button, but rely on the window manager for this. For all the figures and screenshots in this article I have used olvwm: the Open Look Virtual Window Manager.

You will also notice that the menus are rather sparse; there is, in fact, not a great deal more functionality offered by the graphical interface than in an intelligent console. Don't be put off—there's more here than meets the eye!

To save displaying too many screenshots, we shall go back to console mode. All MuPAD expressions are terminated with a colon or semi-colon (the colon suppresses display of the output), and the syntax is similar to that of Maple.

When MuPAD is started, a kernel (written in C++) is loaded; this defines a number of basic commands, functions, and constants. Other commands are available in specialized libraries, written in MuPAD's own language. These commands have to be loaded explicitly: either individually, or with the entire library.

We will start our investigation of MuPAD with a mathematical classic:

>> 2+2; 4

Passed with flying colours! Now let's try some problems beyond the reach of your average hand-held calculator.

>> 3^(4^5); 37339184874102004353295975418486658822540977678373400775063693172207904061 72652512299936889388039772204687650654314751581087270545921608585813513369 82809187314191748594262580938807019951956404285571818041046681288797402925 51766801234061729839657473161915238672304623512593489605859058828465479354 05059362023765478074427305821445270589887562514528177934133521419207446230 27518729185432862375737063985485319476416926263819972887006907013899256524 297198527698749274196276811060702333710356481As you see, MuPAD has no fear about dealing with very large integers.

>> DIGITS:=1000:float(PI); 3.141592653589793238462643383279502884197169399375105820974944592307816406 28620899862803482534211706798214808651328230664709384460955058223172535940 81284811174502841027019385211055596446229489549303819644288109756659334461 28475648233786783165271201909145648566923460348610454326648213393607260249 14127372458700660631558817488152092096282925409171536436789259036001133053 05488204665213841469519415116094330572703657595919530921861173819326117931 05118548074462379962749567351885752724891227938183011949129833673362440656 64308602139494639522473719070217986094370277053921717629317675238467481846 76694051320005681271452635608277857713427577896091736371787214684409012249 53430146549585371050792279689258923542019956112129021960864034418159813629 77477130996051870721134999999837297804995105973173281609631859502445945534 69083026425223082533446850352619311881710100031378387528865875332083814206 17177669147303598253490428755468731159562863882353787593751957781857780532 171226806613001927876611195909216420199The value

>> DIGITS:=100:float(1/997); 0.001003009027081243731193580742226680040120361083249749247743229689067201 604814443329989969909729187562 >> 43^(1/5); 2.121747460841897852639905031079416833442447899377300135845506404964677379 294415637755003497680157377

The general command **solve** can be used to
solve equations of all types: algebraic, differential,
recurrence.

>> solve(x^2-4*x+3=0,x); {1, 3} >> sols:=solve(a*x^3+b*x^2+c*x+d=0,x):

We will suppress the output as it is rather long, but let's see what we can do with it:

>> op(sols,1); / 3 / 2 3 3 2 2 \1/2 \ | b c d b | d b c d c b d b c | | | ---- - --- - ----- + | ---- - ----- + ----- + ----- - ------ | |^(1/3) | 2 2 a 3 | 2 3 3 4 4 | | \ 6 a 27 a \ 4 a 6 a 27 a 27 a 108 a / / / 3 / 2 3 3 2 2 \ b | b c d b | d b c d c b d b c | - --- + | ---- - --- - ----- - | ---- - ----- + ----- + ----- - ------ | 3 a | 2 2 a 3 | 2 3 3 4 4 | \ 6 a 27 a \ 4 a 6 a 27 a 27 a 108 a / 1/2 \ | |^(1/3) | /The

>> generate::TeX(%); "- \\frac{b}{3 a} + \\sqrt[3]{- \\frac{d}{2 a} + \\frac{b c}{6 a^2} - \\fr\ ac{b^3}{27 a^3} + \\sqrt{- \\frac{b c d}{6 a^3} + \\frac{d^2}{4 a^2} + \\f\ rac{c^3}{27 a^3} + \\frac{b^3 d}{27 a^4} - \\frac{b^2 c^2}{108 a^4}}} + \\\ sqrt[3]{- \\frac{d}{2 a} + \\frac{b c}{6 a^2} - \\frac{b^3}{27 a^3} - \\sq\ rt{- \\frac{b c d}{6 a^3} + \\frac{d^2}{4 a^2} + \\frac{c^3}{27 a^3} + \\f\ rac{b^3 d}{27 a^4} - \\frac{b^2 c^2}{108 a^4}}}"The

Here **%** refers to the output of the
previous command. This result can now be saved to a file:

>> fprint("solution.tex",%);

MuPAD can also solve systems of algebraic equations.

>> solve({x+2*y+a*z=-1,a*x-3*y+z=3,2*x-a*y-5*z=2},{x,y,z}); { { 2 2 2 } } { { a - a 3 a - 5 a - 19 11 a - 2 a + 19 } } { { z = --------------, x = ---------------, y = ---------------- } } { { 3 3 3 } } { { a - 17 a - 19 a - 17 a - 19 a - 17 a - 19 } }The above system, being linear, could have been solved equally well by using the

There are a few basic number theory functions in the kernel;
others are contained in the **numlib**
library.

>> isprime(997); TRUE >> Factor(2^67-1); 193707721 761838257287 >> nextprime(1000000); 1000003 >> powermod(9382471,322973,1298377); 880825 >> phi(nextprime(2^20)-1); 498400

Here **phi** is Euler's totient function
returning the number of integers less than and relatively prime to
its argument. These functions allow us to perform simple RSA
encryption and decryption. Suppose we choose two primes and compute
their product:

>> p:=nextprime(5678); 5683 >> q:=nextprime(6789); 6791 >> N:=p*q; 38593253Now we have to choose an integer e relatively prime to (p-1)*(q-1); a smaller prime will do; say e:=17.

>> e:=17:The values e and N are our “public key”. Now we find the d, the inverse of e modulo (p-1)*(q-1). This is very easily done using the convenient overloading of the reciprocal function:

>> d:=1/e mod (p-1)*(q-1); 6808373Suppose someone wishes to send us a message M < N; say

>> M:=24367139;They can encrypt it using our public key values:

>> M1:=powermod(M,e,N); 18476508We can now decrypt this using the value d (and N):

>> powermod(M1,d,N); 24367139This is indeed the value of the original message.

We have seen a glimpse of MuPAD's symbolic abilities in the equation solving above. But MuPAD can do much more than this: all manner of algebraic simplification; rewriting in a different form; partial fractions; and so on.

>> expand((x+2*y-3*z)^4); 4 4 4 3 3 3 3 3 x + 16 y + 81 z + 32 x y + 8 x y - 108 x z - 12 x z - 216 y z - 3 2 2 2 2 2 2 2 96 y z + 216 x y z - 144 x y z - 72 x y z + 24 x y + 54 x z + 2 2 216 y z >> Factor(%); 4 (x + 2 y - 3 z) >> sum(1/(k*(k+2)*(k+4)),k=1..n); 2 3 4 310 n + 337 n + 110 n + 11 n ---------------------------------------- 2 3 4 4800 n + 3360 n + 960 n + 96 n + 2304 >> partfrac(%); 1 1 1 1 --------- - --------- - --------- + --------- + 11/96 8 (n + 3) 8 (n + 1) 8 (n + 2) 8 (n + 4) >> normal(%); 2 3 4 310 n + 337 n + 110 n + 11 n ---------------------------------------- 2 3 4 4800 n + 3360 n + 960 n + 96 n + 2304 >> Factor(%); 2 n (n + 5) (55 n + 11 n + 62) ---------------------------------- 96 (n + 1) (n + 2) (n + 3) (n + 4) >> sum(sin(k*x),k=1..n); (I exp(-I x) - I exp(I x) + I exp(-I n x) - I exp(I n x) - I exp(- I x - I n x) + I exp(I x + I n x)) / 4 - 2 exp(-I x) - 2 exp(I x) >> rewrite(%,sincos); (2 sin(x) + 2 sin(n x) + I cos(x + n x) - 2 sin(x + n x) - I cos(- x - n x) ) / 4 - 4 cos(x)

MuPAD's calculus skills are excellent. It implements very powerful algorithms for differentiation, integration, and limits.

>> diff(x^3,x); 2 3 x >> diff(exp(exp(x)),x$4); 2 3 exp(x) exp(exp(x)) + 7 exp(x) exp(exp(x)) + 6 exp(x) exp(exp(x)) + 4 exp(x) exp(exp(x))

The dollar operator, **$**, is MuPAD's
sequencing operator. As with most operators, it is overloaded; in
the context of a derivative it is interpreted as a multiple
derivative. We can of course also perform partial differentiation.

>> int(sec(x),x); ln(2 sin(x) + 2) ln(2 - 2 sin(x)) ---------------- - ---------------- 2 2 >> int(cos(x)^3, x=-PI/4..PI/3); 1/2 1/2 5 2 3 3 ------ + ------ 12 8 >> int(E^(-x^2),x=0..0.5); / 1 \ int| --------, x = 0..0.5 | | 2 | | x | \ exp(1) / >> float(%); 0.461281006412792448755702936740453103083759088964291146680472565934983884\ 2952938567126622486999424745If we require only a numeric result, then we don't want to force MuPAD to attempt a symbolic or exact solution first. In such a case we may use the

>> hold(int(exp(-x^2),x=0..0.5));followed by the

The default order of a power series is 6. This can be changed
either by changing the value of **ORDER** (analogous
to **DIGITS** above), or by including the order in
the **series** command. This last inclusion is
optional.

>> tx:=series(tan(x),x,12); 3 5 7 9 11 x 2 x 17 x 62 x 1382 x 12 x + -- + ---- + ----- + ----- + -------- + O(x ) 3 15 315 2835 155925 >> cx:=series(cos(x),x,12); 2 4 6 8 10 x x x x x 12 1 - -- + -- - --- + ----- - ------- + O(x ) 2 24 720 40320 3628800 >> tx*cx; 3 5 7 9 11 x x x x x 12 x - -- + --- - ---- + ------ - -------- + O(x ) 6 120 5040 362880 39916800

This certainly *looks* like the series for
sin(x), but let's see if MuPAD recognizes it as such.

>> sx:=series(sin(x),x,12): >> is(tx*cx=sx); TRUE >> type(tx*cx); PuiseuxThis means that the result of the series product is recognized by MuPAD as an object of type “Puiseux”; that is, a series possibly containing fractional powers.

MuPAD can also deal with polynomials.

>> p1:=x^8-3*x^5+11*x^4-x^2+17; 4 2 5 8 11 x - x - 3 x + x + 17 >> p2:=x^3-23*x^2-4*x+11; 3 2 x - 4 x - 23 x + 11 >> divide(p1,p2); 2 3 4 5 285641 x + 12337 x + 533 x + 23 x + x + 6613228, 2 23310861 x + 153111100 x - 72745491

The result of the last command consists of two terms: the quotient, and the remainder. MuPAD also has commands for extracting coefficients from polynomials, evaluating polynomials using Horner's algorithm, and lots more.

We shall first create a matrix domain:

>> M:=Dom::Matrix(); Dom::Matrix(Dom::ExpressionField(id, iszero))

The result returned here indicates that MuPAD expects that
the elements of matrices will be members of a field for which no
normalization is performed (the function **id** just
returns elements as given), and for which 0 is recognized as the
zero value.

Now we shall make all the commands in the library
**linalg** available to us:

>> export(linalg);

Now we shall create a few matrices and play with them. First, a matrix with given elements.

>> A:=M([[1,2,3],[-1,3,-2],[4,-5,2]]); +- -+ | 1, 2, 3 | | | | -1, 3, -2 | | | | 4, -5, 2 | +- -+We have entered the matrix elements as a list of lists (a list, in MuPAD, is delimited by square brackets).

Next, a matrix with elements randomly chosen to be between -9
and 9. We do this by applying the function returned by
**random** to each of the elements.

>> B:=M(3,3,func(random(-9..9)(),i,j)); +- -+ | -7, -5, 8 | | | | 3, -1, 7 | | | | 3, -5, 6 | +- -+

Clearly this approach can be used to generate any matrix
whose elements are functions of their row and column values. There
is a **randomMatrix** command in the
**linalg** library, but it requires the elements to
be members of a coefficient ring. For our purposes, it is as easy
to roll our own.

>> A*B; +- -+ | 8, -22, 40 | | | | 10, 12, 1 | | | | -37, -25, 9 | +- -+ >> det(A); -37 >> 1/A; +- -+ | 4/37, 19/37, 13/37 | | | | 6/37, 10/37, 1/37 | | | | 7/37, -13/37, -5/37 | +- -+As we have seen above, MuPAD supports operator overloading, which means that since

>> A^10; +- -+ | 19897010, -20429930, 22281963 | | | | -42711893, 43857348, -47862790 | | | | 64993856, -66730117, 72852811 | +- -+ >> b:=M(3,1,[7,9,-21]); +- -+ | 7 | | | | 9 | | | | -21 | +- -+Here the first two (optional) values give the number of rows and columns of the matrix, the matrix elements are then given in a single list. If the list isn't long enough, the remaining values will default to zero.

>> linearSolve(A,b); +- -+ | -2 | | | | 3 | | | | 1 | +- -+ >> AM:=A.b; +- -+ | 1, 2, 3, 7 | | | | -1, 3, -2, 9 | | | | 4, -5, 2, -21 | +- -+The . operator is concatenation. Again, this is an overloaded operator, as it will work for other data types as well.

>> gaussJordan(AM); +- -+ | 1, 0, 0, -2 | | | | 0, 1, 0, 3 | | | | 0, 0, 1, 1 | +- -+The

We first define a differential equation by defining it to be
an equation in the **ode** domain.

>> de:=ode(y'(x)+4*y(x)=exp(3*x),y(x)); ode(4 y(x) + diff(y(x), x) = exp(3 x), y(x))

Note that MuPAD supports the dash notation for the derivative.

>> solve(de); { 3 } { exp(x) } { ------- + C1 exp(-4 x) } { 7 }We can, of course, solve equations with initial conditions:

>> de2:=ode({y''(x)-2*y'(x)+3*y(x)=0,y(0)=1,y'(0)=2},y(x)); ode({D(y)(0) = 2, y(0) = 1, 3 y(x) - 2 diff(y(x), x) + diff(y(x), x, x) = 0 }, y(x)) >> solve(de2); { 1/2 1/2 } { 1/2 exp(x) 2 sin(x 2 ) } { exp(x) cos(x 2 ) + ----------------------- } { 2 }MuPAD will solve linear differential equations with little fuss, and also a large class of non-linear differential equations.

Recurrence relations are solved similarly; by defining an
equation to be of type **rec**, and applying the
command **solve**.

>> rr:=rec(a(n)=a(n-1)+3*a(n-2),a(n)); rec(a(n) = a(n - 1) + 3 a(n - 2), a(n)) >> solve(rr); { / 1/2 \n / 1/2 \n } { | 13 | | 13 | } { a1 | ----- + 1/2 | + a2 | 1/2 - ----- | } { \ 2 / \ 2 / }

If we include initial conditions, MuPAD will return the exact solution.

>> rr2:=rec(a(n)=a(n-1)+3*a(n-2),a(n),{a(0)=1,a(1)=3}); rec(a(n) = a(n - 1) + 3 a(n - 2), a(n), {a(0) = 1, a(1) = 3}) >> solve(rr2); { / 1/2 \ / 1/2 \n / 1/2 \ / 1/2 \n } { | 5 13 | | 13 | | 5 13 | | 13 | } { | 1/2 - ------- | | 1/2 - ----- | + | ------- + 1/2 | | ----- + 1/2 | } { \ 26 / \ 2 / \ 26 / \ 2 / }In the case of a non-homogeneous equation, MuPAD returns the particular solution.

>> rr3:=rec(a(n) = a(n - 1) + 3*a(n - 2)+n^2, a(n)); 2 rec(a(n) = a(n - 1) + 3 a(n - 2) + n , a(n)) >> solve(rr3); { 2 } { 14 n n } { - ---- - -- - 59/27 } { 9 3 }

Graphical display in MuPAD is produced by means of a separate
program called **VCam**, which can be
used entirely independent of MuPAD. But let's suppose we are in the
middle of a MuPAD session (started with xmupad), and we wish to
plot a few functions. The command **plotfunc** will
allow us to plot functions of the form y=f(x), or in three
dimensions, of the form z=f(x,y).

>> plotfunc(1/(1+x^2),x=-4..4); >> plotfunc(x^3-3*x*y^2,x=-2..2,y=-2..2);

Such commands will open up a VCam window with the function displayed in it, and also another window in which it is possible to change various plot options. The output of this second command is shown in Figure 2, along with various of VCams's windows.

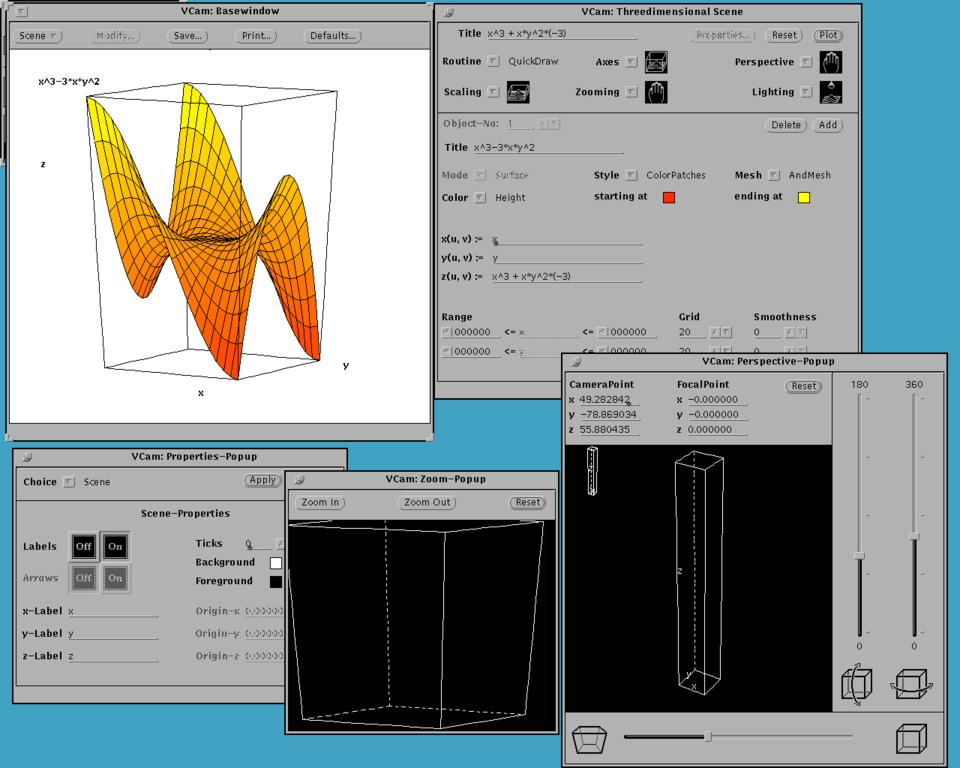

**Figure 2. A
Screenshot of VCam in Action**

More general plot commands are **plot2d** and
**plot3d**, by which the above plots can be
generated as follows:

>> plot2d(Mode = Curve, [u, 1/(1+u^2)], u = [-4, 4]]); >> plot3d([Mode = Surface, [u, v, exp(-sqrt(u^2+v^2))], u = [-4, 4], v = [-4, 4]]);

We see that these commands use a parametric representation of the function. This allows for the easy plotting of a large number of different functions. There are a large number of plot options, including colours of plots and backgrounds, style of curves or surfaces, position and style of axes, labels and titles. All these can be changed interactively in VCam, or given as options to the plot command.

For a more complex example, let's plot a torus, with radii 3 and 1. This can be plotted with:

>> plot3d([Mode = Surface, [(3+cos(u))*cos(v), (3+cos(u))*sin(v), sin(u)], u = [0, 2*PI], v = [0, 2*PI]]);

This will give a wireframe torus with three numbered axes—not a particularly elegant result. We can add more options to this basic command to give us a nice filled-in torus with hidden lines, nestling in a box with no numbers:

>> plot3d(Title = "A torus", Axes = Box, Labels = ["","",""], Ticks = 0, [Mode = Surface, [(3+cos(u))*cos(v), (3+cos(u))*sin(v), sin(u)], u = [0, 2*PI], v = [0, 2*PI] Style = [ColorPatches, AndMesh]]);All these options can now be changed again with VCam. We can also change the perspective; zoom in and out; modify the colour scheme; and many other things. We can draw several surfaces at once, by placing multiple surface definitions in the one

>> plot3d(Title = "Two tori", Axes = Box, Labels = ["","",""], Ticks = 0, [Mode = Surface, [(5+cos(u))*cos(v), (5+cos(u))*sin(v), sin(u)], u = [0, 2*PI], v = [0, 2*PI], Style = [ColorPatches, AndMesh] ], [Mode = Surface, [sin(u), 5+(5+cos(u))*cos(v), (5+cos(u))*sin(v)], u = [0, 2*PI], v = [0, 2*PI], Style = [ColorPatches, AndMesh] ] );The result of this is shown in Figure 3.

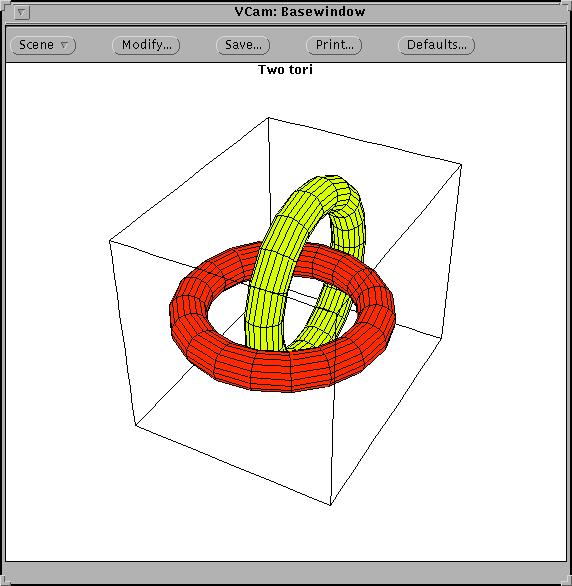

**Figure 3. Two
Interlocking Tori**

When dealing with such long expressions as this, it is
convenient to first use your favorite editor to create a small
file, say “**tori.mu**”, to contain the above
command, then read it into MuPAD:

>> read("tori.mu");

This obviates using MuPAD's own text editing facilities, which are very basic.

We have loosely tossed about the term “domain”. We shall now look at this in a bit (but not much) more detail. Domains are fundamental to the way in which MuPAD works, and we need to have a basic understanding of them in order to use MuPAD effectively.

A domain in MuPAD is either an algebraic structure (such as finite field or permutation group) or a data type (such as Matrix, Polynomial or Fraction), for which overloaded operators or functions defined on that domain always return results in the domain (or the result FAIL if no result exists).

To give some examples, suppose we investigate matrices over the integers modulo 29. Since 29 is prime, these integers form a Galois field, and so the matrices should respond to all standard arithmetic operations.

First the definition:

>> M29:=Dom::Matrix(Dom::IntegerMod(29)); Dom::Matrix(Dom::IntegerMod(29))

We have two domains being used here:
**Dom::Matrix**, which creates a matrix domain, and
**Dom::IntegerMod(29)**, which creates the field of
integers modulo 29.

>> A:=M29([[100,200,-30],[47,-97,130],[13,33,-1001]]); +- -+ | 13 mod 29, 26 mod 29, 28 mod 29 | | | | 18 mod 29, 19 mod 29, 14 mod 29 | | | | 13 mod 29, 4 mod 29, 14 mod 29 | +- -+Notice that the result returned by MuPAD is automatically normalized so that the matrix elements are in the required field. If we enter values which can't be normalized (say, decimal fractions), MuPAD will return an error message.

>> 1/A; +- -+ | 3 mod 29, 8 mod 29, 15 mod 29 | | | | 28 mod 29, 9 mod 29, 22 mod 29 | | | | 12 mod 29, 19 mod 29, 13 mod 29 | +- -+Here the inverse operator returns a suitable result. Let's check this.

>> %*A; +- -+ | 1 mod 29, 0 mod 29, 0 mod 29 | | | | 0 mod 29, 1 mod 29, 0 mod 29 | | | | 0 mod 29, 0 mod 29, 1 mod 29 | +- -+This is the identity for our particular matrix ring. Now we can try a few other matrix operations.

>> linalg::det(A); 12 mod 29 >> linalg::gaussElim(A); +- -+ | 13 mod 29, 26 mod 29, 28 mod 29 | | | | 0 mod 29, 12 mod 29, 2 mod 29 | | | | 0 mod 29, 0 mod 29, 9 mod 29 | +- -+ >> linalg::gaussJordan(A); +- -+ | 1 mod 29, 0 mod 29, 0 mod 29 | | | | 0 mod 29, 1 mod 29, 0 mod 29 | | | | 0 mod 29, 0 mod 29, 1 mod 29 | +- -+ >> A^10; +- -+ | 22 mod 29, 10 mod 29, 3 mod 29 | | | | 3 mod 29, 21 mod 29, 16 mod 29 | | | | 4 mod 29, 18 mod 29, 5 mod 29 | +- -+ >> exp(A); FAILThe matrix exponential exp(X) is defined as 1 + X + (X^2)/2 + (X^3)/6 + (X^4)/24 + . . . + (X^n)/n! + . . . As you might expect, this is not defined for matrices over our field. For another example, consider polynomials over the integers modulo 2. The definition is similar to the matrix definition above.

>> PK:=Dom::Polynomial(Dom::IntegerMod(2)); Dom::Polynomial(Dom::IntegerMod(2))Now we'll create a polynomial in this domain.

>> p1:=PK(x^17+1); 17 x + 1For good measure, we'll create a second polynomial which looks the same, but is not in our domain.

>> p2:=x^17+1; 17 x + 1Even though they look the same on the screen, MuPAD knows all about them; the type command will tell us.

>> type(p1); Dom::Polynomial(Dom::IntegerMod(2)) >> type(p2); "_plus"(The result of this last command is that

>> Factor(p1); 3 4 5 8 2 4 6 7 8 1 (x + 1) (x + x + x + x + 1) (x + x + x + x + x + x + 1) >> Factor(p2); 2 3 4 5 6 7 8 9 10 11 12 13 (x + 1) (x - x - x + x - x + x - x + x - x + x - x + x - x 14 15 16 + x - x + x + 1)The

MuPAD comes with a very full-featured programming language. So much so, that I would say that this is one of MuPAD's greatest strengths. In contradistinction to other CASs, MuPAD allows:

procedural programming

functional programming

object oriented programming

parallel processing

It would take far more than an introductory exposition such
as this to even scratch the surface of MuPAD's programming power,
so we shall just look at a few simple examples. For more involved
examples, try the **expose** command, or look at
some of the files in your **$MuPAD/share/examples**
directory.

For procedural programming, MuPAD offers all the standard programming requirements: loops of various sorts, branching, and recursion. Here, for example, is a simple procedure designed to implement Hofstadter's chaotic function, with line numbers as shown:

1 q:=proc(n) option remember; 2 begin 3 if n<=2 then 4 1 5 else 6 q(n-q(n-1))+q(n-q(n-2)) 7 end_if; 8 end_proc;

Suppose we create a small file called
**Hofstadter.mu** containing these lines, and we
read it into MuPAD with

>> read("Hofstadter.mu");This will make the function

>> q(i)$i=1..20; 1, 1, 2, 3, 3, 4, 5, 5, 6, 6, 6, 8, 8, 8, 10, 9, 10, 11, 11, 12Or we can graph the first ten thousand values:

>> plot2d([Mode = List,[point(u,q(u)) $ u=1..10000]]);A few points about this simple procedure: the

We can define simple functions very readily by using an “arrow” definition:

>> f:=x->x^2+1;

Curiously, I can't find any reference to this in the manual.

For a slightly more involved example, suppose we try to write a program to generate truth tables. That is, so that something like

>> tt(p and q);

will produce

p, q, p and q T, T, T T, F, F F, T, F F, F, FTo make things easy for ourselves, we shall include the variables of the boolean expression in the function call, so as to save the bother of parsing the expression to obtain its variables. And here is such a program:

1 tt:=proc() 2 local i,j,n,l,ft,f,r,rf; 3 begin 4 if args(0) <= 1 then error("Must include all variables"); 5 end_if; 6 7 ft:=[FALSE,TRUE]; 8 n:=args(0)-1; 9 print(Unquoted,args(j)$j=2..args(0),expr2text(args(1))); 10 11 for j from 2^n-1 downto 0 do 12 f:=args(1); 13 14 for i from 1 to n do 15 l[i]:=floor(j/(2^(n-i))) mod 2; 16 end_for; 17 18 for i from 1 to n do 19 f:=subs(f,args(i+1)=ft[l[i]+1]); 20 end_for; 21 22 for i from 1 to n do 23 r[i]:=_if(l[i]=0,"F","T"); 24 end_for; 25 26 rf:=_if(simplify(f,logic),"T","F"); 27 28 print(Unquoted,r[i]$hold(i)=1..n,rf); 29 end_for; 30 end_proc:Some points here: the value

This program may be considered as skeletal only; for example, it does no type checking.

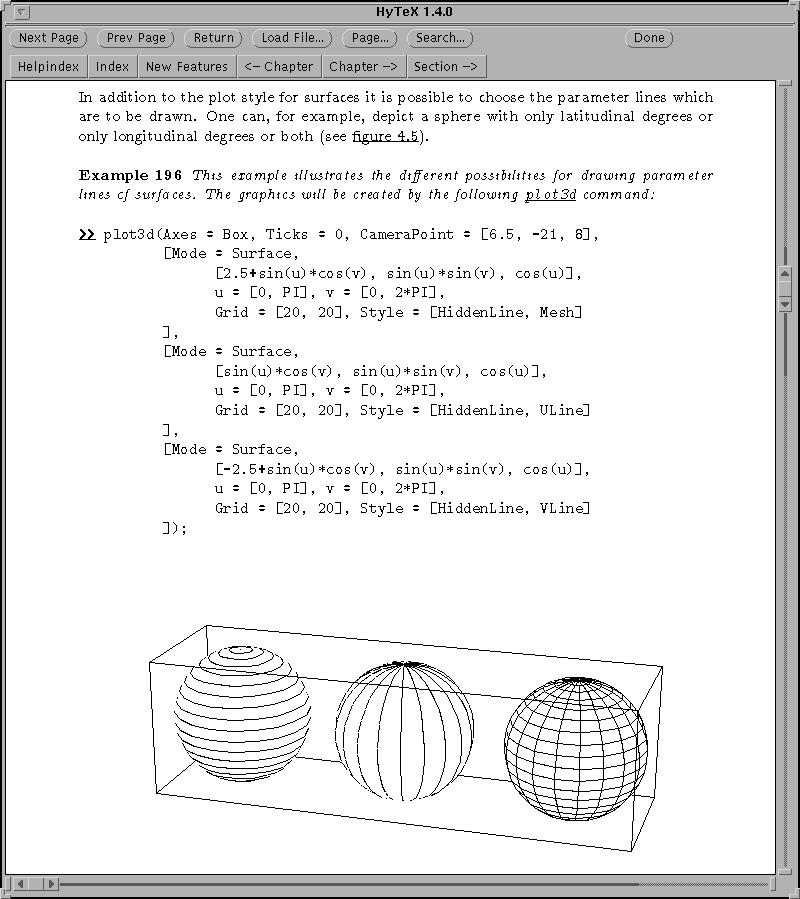

There are several ways of obtaining information about MuPAD: through the extensive on-line help facility, or from published articles.

A few MuPAD books are currently available, but I haven't seen one. The on-line documentation is excellent. It exists in two forms: plain ASCII (for use with MuPAD in terminal mode); and dvi with hyperlinks, when using MuPAD under X.

For ASCII, the help commands are obtained with a question mark:

>> ?<command>

will provide a few screens of information about
**<command>**. Notice that this is the only
MuPAD command which doesn't require a terminating colon or
semicolon. The amount of documentation varies; but usually includes
a basic description, some examples, and a list of related commands.
Some help files are very large indeed; others very small. For
example

>> ?stats::medianis short; it basically just tells you that this command returns the median of a list of values. However

>> ?Dom::Matrixis very long, with a detailed discussion about creation of matrices, and operations defined for matrices.

Information about a MuPAD library can be obtained with the
**info** command; for example

>> info(numlib);

provides a list of all commands in the
**numlib** library. You can also use

>> ?numlibto obtain a brief description of all of

You can see the MuPAD programs which define a function with
the use of **expose**. Again, programs vary greatly
in length. For example

>> expose(length);

returns a short function defined by a six-line program, but

>> expose(D)returns a 164-line program. You can also use

>> op(Dom::Matrix);returns all 1482 lines of the MuPAD program defining matrices.

The documentation for xmupad is provided in the form of a dvi
file of the manual, with lots of hyperlinks. The manual can
actually be read independently of MuPAD with the
**hypage** command. As with the
commands for starting MuPAD, this is a call to a shell script.
However, hypage is started automatically with xmupad.

All the relevant documentation is provided in the form of hyTeX dvi files; that is, dvi files with embedded hyperlinks. If you are used to TeX and dvi viewers, this approach will seem very sensible: the mathematics is superbly typeset, as you'd expect, and there are plenty of included graphics. It may seem a bit odd at first to use a book (with all the trimmings: table of contents, chapters, an index) as the paradigm for on-line documentation, but in fact it works very well. And after all, everybody is familiar with the structure of a book, so there is no need to learn the particular exigencies and peculiarities of some new and strange help system.

The amount of information is superb. As well as discussions on all commands and functions, there are extensive chapters on graphics, programming, and debugging, as well as two excellent demos. Moreover, as well as the manual, there are hytex dvi files covering all the MuPAD libraries, as well a handy quick reference.

Once xmupad and hypage are up and running, the help command

>> ?<command>

will open up the manual at the relevant page. Once inside the manual, you can use the hyperlinks to travel through other similar commands. I find hypage very easy to use. If you have installed MuPAD, you should find this entire article redundant, as everything in it is covered in far greater depth in the manual.

A screen shot of hypage is shown in Figure 4.

**Figure 4.
Hypage—MuPAD's Graphics Hypertext Manual**

However, I have a few niggles with hypage. The main one is that there is no way of changing the font size or page layout. If you reduce the size of the hypage window, for example, the text is not reformatted to fit the available window size, and so you have to use inconvenient scroll bars to view the text. This makes hypage nearly unworkable on a 640x480 VGA screen (such as on my laptop). Moreover, all the text is in the same colour (hyperlinks are given by underlines), which I find a bit dull. There also doesn't seem to be much in the way of keystroke movements. I found three (they aren't listed in the manual): p for previous page; f for forward, and r for return (to the linking page).

On the other hand, with a higher resolution screen, hypage is a delight to use.

The canonical MuPAD site is

but most information is at

to which you are directed from the MuPAD site. Here you will find a few FAQs, some examples of MuPAD in different areas of mathematics, and some comparisons with other CASs. Unfortunately these comparisons are fairly old, and at the time of writing they have not been upgraded to the latest version of MuPAD. There are also a few technical articles written by members of the MuPAD team discussing aspects of MuPAD internal workings. These articles should be read if you wish to master MuPAD.

You will also find some MathPAD journals. These are published by the MuPAD team, and cover CASs and their uses in general. Only a few of them are devoted to MuPAD, and these few are well worth reading, as they give fascinating insight into the development of MuPAD, and the reasons for various design considerations.

As yet, there are no books on MuPAD, aside from the published manual, and few articles in the open literature. The two sites above, and the on-line documentation, pretty much cover the lot.

Couldn't be easier! You need to download two files: one containing the binaries (mupad, xmupad, vcam, hypage and such); and the other the “shared” material: the documentation and MuPAD libraries. Uncompress them, and untar them in a suitable directory (/usr/local/MuPAD is a good spot, but anywhere will do), and add /usr/local/MuPAD/share/bin (or whatever) to your path. As I mentioned before, this bin directory contains only shell scripts, which set all necessary environment variables before calling the binaries. Thus there is no need for any extra fiddling.

To use the graphical capabilities of MuPAD, you also need the xview libraries installed on your system.

You will find that MuPAD, thus installed, has certain memory restrictions: you will be unable to deal with commands requiring intensive memory use. To overcome this, you need to register your copy of MuPAD. This will provide you with a license key which you can use to unlock the MuPAD's memory use.

One of the most commonly asked questions to the sci.math.symbolic newsgroup is: “What's the difference between...?” The best answer I've seen so far is: “They're spelled differently!” In that spirit, I intend not to give a detailed anaysis of the differences between MuPAD and other CASs, but instead to make a few general points.

First, MuPAD can't be beaten on price: it's free! Strictly speaking, this is not true; there are circumstances for which you must pay to use MuPAD. But for a single-user Linux user (and which of us is not?), it costs nothing.

The interface is pretty clumsy compared with the lovely worksheet interface of Maple and Mathematica. The interface for MuPAD under MS Windows 95/NT is much more refined, but you have to pay for it. For this reason alone, I would say that MuPAD is not as well suited as its rivals for elementary teaching. It's nice to see input and output in different colours, and for mathematics output to be presented properly typeset. I also like having graphical output as part of the worksheet. Currently, none of these are possible in MuPAD.

Again, MuPAD does not have the mathematical breadth of its
rivals. An example will illustrate my point: the attempt to solve
the Riccati differential equation dy 2 2 -- = x + y , y(0) = 1. dx
Maple can solve this with no problem; the solution is a complicated
expression involving Bessel functions. However, MuPAD can't solve
this; it doesn't know enough about Bessel functions to recognize
all possible places where they may apply. Also, its
**solve** command, as applied to differential
equations, does not have the power of Maple's
**dsolve** command. However, MuPAD is a much younger
product, and wheras both Maple and Mathematica are produced by
large companies with enviable resources, MuPAD is produced by one
small and chronically underfunded research team.

On the flip side, MuPAD is as extendible as its rivals. Its programming power is easily equal to that of Maple and Mathematica. What's more, it provides different programming paradigms, and doesn't force you into any particular style. Again, it offers full parallel programming, and comes with an excellent graphical debugger. To do these topics justice would require at least another article the same size as this one, so get MuPAD and read its documentation!

The use of domains in MuPAD means that it is possible to explore deep aspects of mathematics, and to write very general routines. Thus MuPAD has a depth equal to or greater than its rivals, even if it loses out on breadth.

So why use MuPAD? If you are after a CAS to be used as a “black box” to churn out solutions to equations; then MuPAD is not as suitable as its rivals (at least, not yet). However, if you are exploring mathematical relationships and structures, then MuPAD would appear to be the tool of choice.

I am extremely impressed with MuPAD; free software of this excellence is produced very rarely indeed. MuPAD deserves the full support of the Linux community, and if you use mathematics in any way, then MuPAD should find a home on your system.

Copyright © 1994 - 2017 Linux Journal. All rights reserved.
