A look at the Linux kernel scheduler.
One of the most important tasks of an operating system kernel is to manage processes and threads. A process is a program in execution, and a thread is just a CPU state stored within a process. A CPU context is either a process or a thread. Most processes have only one thread, but some processes, particularly servers, have more. Sometimes programs other than servers use multiple threads; Netscape Navigator is an example of such a program. These processes and threads represent the programs the user has selected to run. If managing processes and threads is slow, overall computer performance will also be slow.

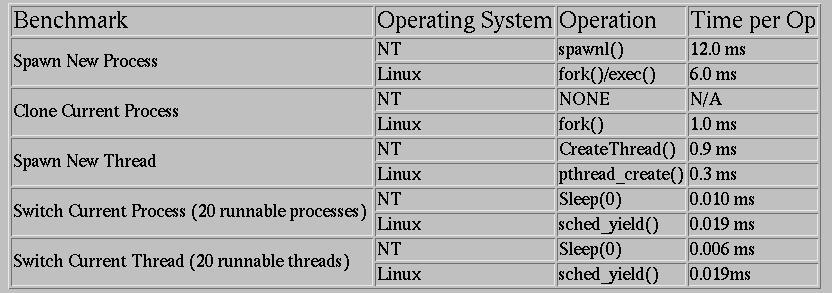

Linux advocates naturally assume that Linux offers better performance than MS Windows. Gregory Travis (greg@littlebear.com) set out to test this assumption by testing the times needed to manage processes and threads. His benchmark was a simple program that timed simple operations like fork or sched_yield by generating a large number of processes or threads that did nothing more, individually, than looping in place. His results generated quite a controversy in the Linux newsgroups and the kernel e-mail list. All tests were done on a 200 MHz Pentium. (See Table 1.)
Linux can create a process twice as fast and a thread three times as fast as NT. Process creation takes longer than thread creation (12x for NT, 3x for Linux), because processes have much more overhead. Memory maps and file descriptor tables are just two of the things that must be created for a process (but not for a thread). Note, however, that Linux creates an entire process (the clone function) in about the same amount of time NT takes just to create a thread (1.0 ms vs. 0.9 ms).
Using this benchmark and an unmodified Linux 2.0.30 kernel, NT is much faster than Linux at context switching, either between processes (1.9x) or threads (3.2x). Since context switching occurs much more frequently than context creation, it would seem that Linux has a problem. But does it?
Why does this simple benchmark make the Linux context switching code so much slower than Windows NT? To answer that, one must understand the Linux scheduler.
The scheduler has a list called the run queue containing all contexts ready to run. These contexts are not sorted in any way. Each context also has a goodness, which is a measure of the current priority of the context. Two loops are within the scheduler. The first loop (the searching loop) finds the context with the highest goodness from the ready queue and selects that context to run. The second loop (the recalc loop) recalculates the goodnesses if all contexts have used their entire time slice. This second loop runs only occasionally. The code in Listing 1 shows the structure of the schedule function.
The search loop needs a small bit of CPU time for every runnable process and needs it on every context switch. The above benchmark shows the context switch times with 40 contexts present and ready to run. That corresponds to a load average of 40 for a single CPU system or 20 for a dual CPU system. These are very large load averages, much larger than what is normally considered healthy. Generally, there will be only a few (perhaps one to three) contexts to choose from. Most processes and threads, even very active ones, will be waiting for some I/O event to occur and are, therefore, not on the ready queue and not considered for selection.
Even heavily loaded machines will generally have most contexts waiting for I/O to complete; those contexts will not be on the run queue. Consider the site http://www.winsite.com/, a very heavily loaded Internet site, with about 200 copies of httpd running as web servers. The total number of processes for all purposes is about 420. The machine is a 333MHz Pentium II connected to three T1 lines.
Measurements of this machine indicate that 24,221,164 context switches occurred over a 17-hour period (400 switches per second). For these switches, during 4% of the time there were over 10 contexts ready to choose from at one moment, and during only 0.1% of the time were there twenty or more. The longest run queue during the 17-hour stretch was only 36 contexts, out of the 420 possible. The mean run-queue length averaged only 2.5 contexts. In a sense, this benchmark represents a worst case for Linux, and the average case, even for heavily loaded machines, is much better.
The second (recalc) loop is even more important in understanding these benchmark results. This recalc loop runs only when every context on the ready queue has used up its entire time slice (generally 20 ticks or 0.2 seconds). The recalc loop then recalculates the priority of each context. Normally, this recalc loop runs only occasionally. Most rescheduling is done in response to an interrupt or because of an I/O request; therefore, most contexts do not use their whole time slice. However, when a process or thread wants to yield the CPU, it calls sched_yield, which treats it as if the process had used its entire time slice. In this way, any process that calls sched_yield has its priority lowered and will not be scheduled again for a substantial period of time. The code for sched_yield is shown in Listing 2.
When all contexts have used their entire time slice, the scheduler recalculates the priority of all contexts using the recalc loop. Since during this benchmark all contexts do one cheap operation (sched_yield) and then have counter set to zero, this recalc loop runs much more often than normal. Again, this benchmark seems to be a worst case for Linux.
For the web site described above, measurements show only one of 200 context switches required a recalculation of its priority—the other 199 context switches did not.
Half the problem can be solved easily; the other half would be more difficult.
There is probably no way to make the search loop run faster; it is well-written code. However, it could be eliminated by simply keeping contexts in the ready queue in sorted order; then the next context to run is the context at the head of the ready queue. Keeping the ready queue in sorted order would require code to take each context being added to the ready queue and place it in the appropriate position. The time needed to find this position would add complexity to the scheduler. For large load averages (implying many contexts on the ready queue), there might be a considerable time savings, but in the more normal case of small ready queues, there is no significant savings.
Minimizing the time needed by the recalc loop would be easy. Again, it is well-written code not likely to be improved upon, but it need not run as often as it does. By changing sched_yield, the recalc loop can run much less often.
For Linux 2.0.30, sched_yield acts as if the yielding context has used the entire time slice. Instead, what if sched_yield acted as if the yielding context had used only one tick of its time slice? Several effects would be noticed:
The yielding process would have its priority reduced by one, rather than temporarily set to zero.
The recalc loop would run much less often. Generally, it would run 1/20 as often (depending on process priority).
The new sched_yield is shown in Listing 3. Compare it to the one in Listing 2. Only one more line is included, yet a large increase in performance is shown for this benchmark.

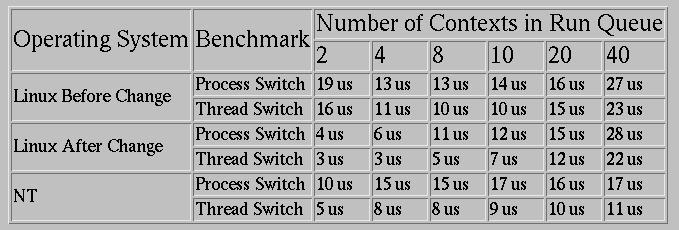

Table 2 summarizes the performance after this change was made. Note that as the run-queue length increases, both the NT and the Linux scheduler take longer to context switch. Linux starts out being the faster context switcher, but NT does relatively better as run-queue length increases. For run-queue lengths of 20 or less (almost always the case in real life), Linux is better.
By making a two-line change to the source code, this benchmark can be greatly improved. However, the benchmark arguably does not reflect real-life usage. Nevertheless, only a two-line change to the kernel is required for a significant benefit to a small number of users. After this change, Linux outperforms Windows NT in all aspects of process and thread creation and in context switching.
All listings referred to in this article are available by anonymous download in the file ftp.linuxjournal.com/pub/lj/listings/issue57/2941.tgz.
