Compression Tools Compared

Data compression works so well that popular backup and networking tools have some built in. Linux offers more than a dozen compression tools to choose from, and most of them let you pick a compression level too. To find out which perform best, I benchmarked 87 combinations of tools and levels. Read this article to learn which compressor is a hundred times faster than the others and which ones compress the most.

The most popular data compression tool for Linux is gzip, which lets you choose a compression level from one to nine. One is fast, and nine compresses well. Choosing a good trade-off between speed and compression ratio becomes important when it takes hours to handle gigabytes of data. You can get a sense of what your choices are from the graph shown in Figure 1. The fastest choices are on the left, and the highest compressing ones are on the top. The best all-around performers are presented in the graph's upper left-hand corner.

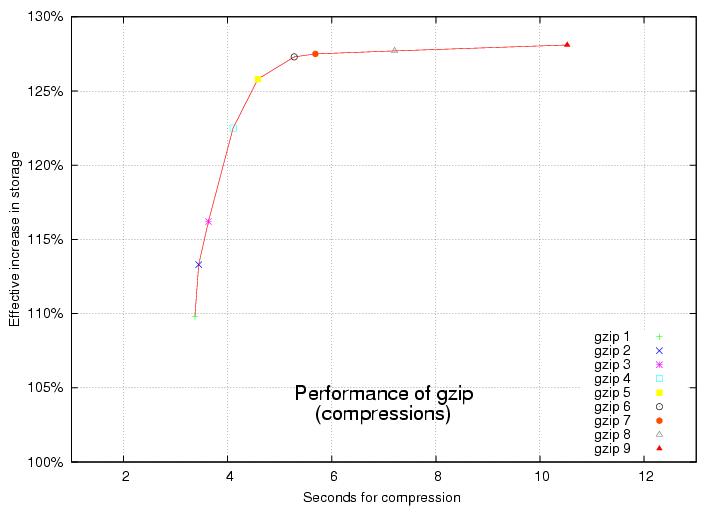

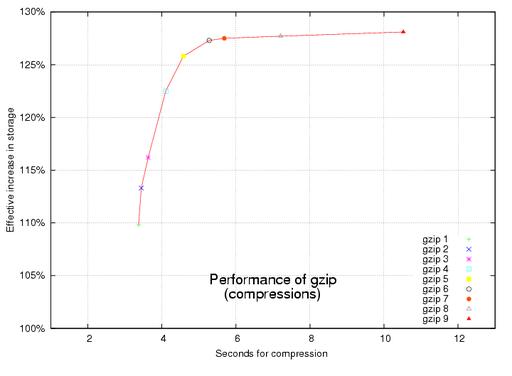

Figure 1. Increasing the compression level in gzip increases both compression ratio and time required to complete.

But many other data compression tools are available to choose from in Linux. See the comprehensive compression and decompression benchmarks in Figures 2 and 3. As with gzip, the best performers are in the upper left-hand corner, but these charts' time axes are scaled logarithmically to accommodate huge differences in how fast they work.

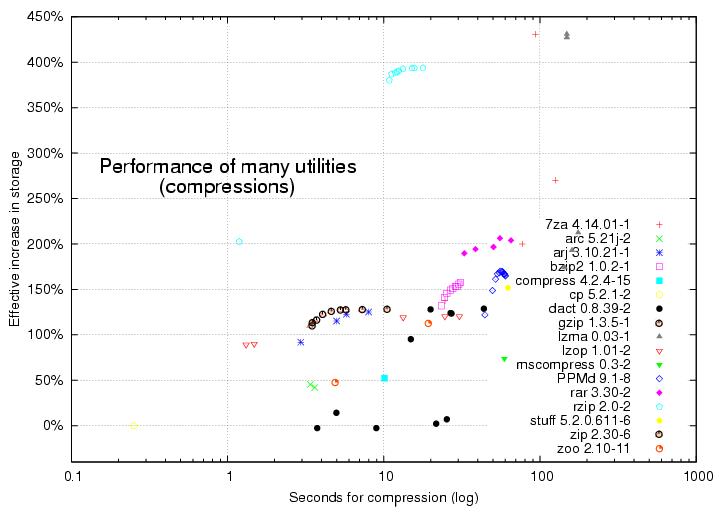

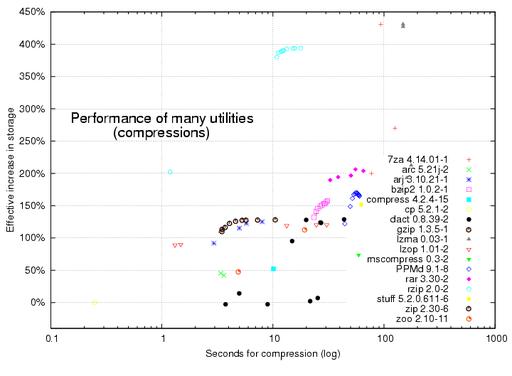

Figure 2. Performance of Many Utilities, Compression

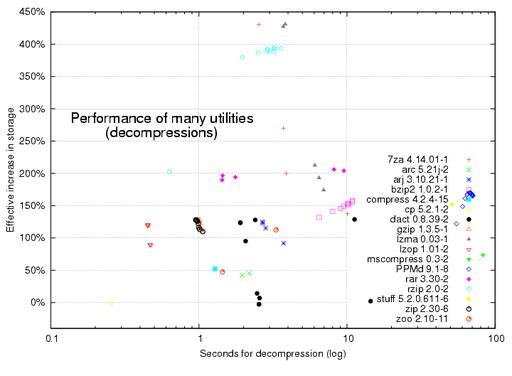

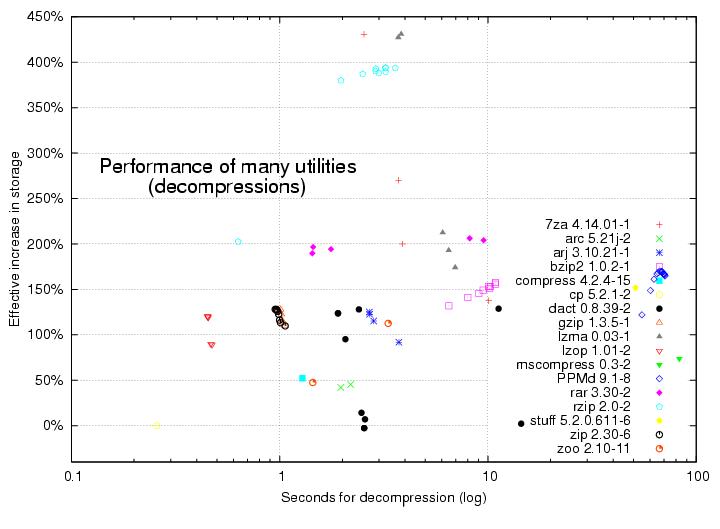

Figure 3. Performance of Many Utilities, Decompression

The tools that tend to compress more and faster are singled out in the graphs shown in Figures 4 and 5. Use these for backups to disk drives. Remember, their time axes are scaled logarithmically. The red lines show the top-performing ones, and the green lines show the top performers that also can act as filters.

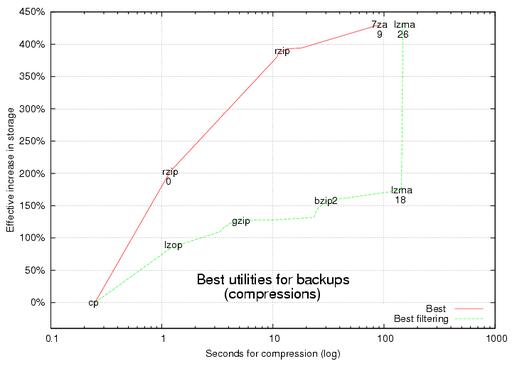

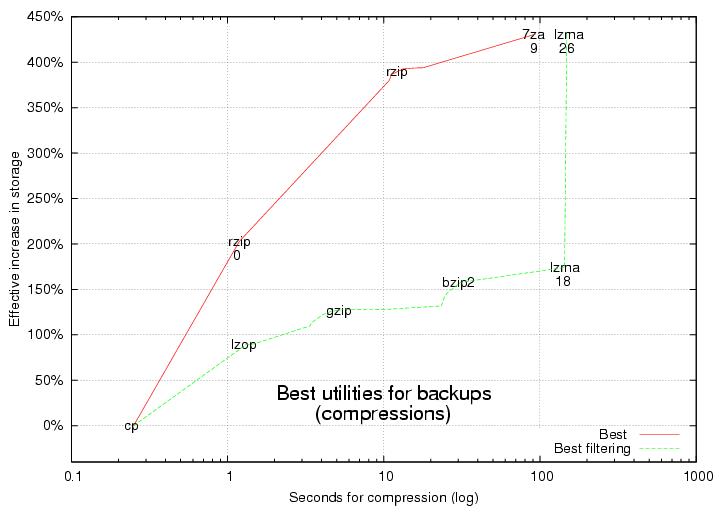

Figure 4. Best Utilities for Backups, Compression

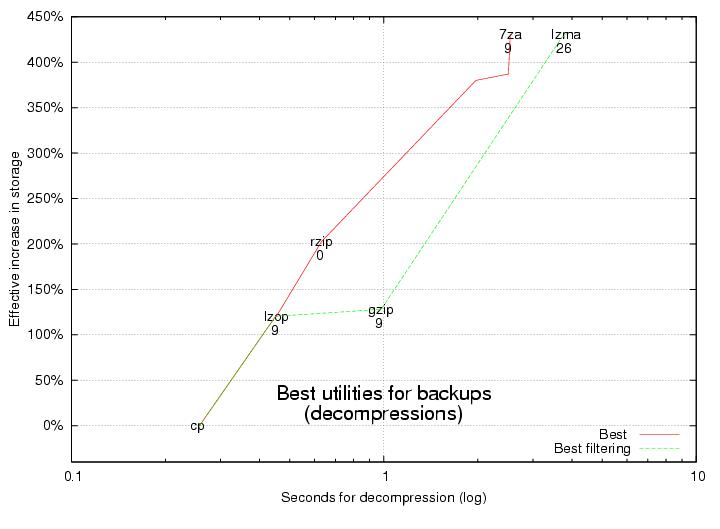

Figure 5. Best Utilities for Backups, Decompression

$ ls | more

Check whether the data compression tool that you want is installed on both computers. If it's not, you can see where to get it in the on-line Resources for this article. Remember to replace a/dir in the following examples with the real path of the data to back up.

Unless your data already is in one big file, be smart and consolidate it with a tool such as tar. Aggregated data has more redundancy to winnow out, so it's ultimately more compressible.

But be aware that the redundancy that saps your performance also may make it easier to recover from corruption. If you're worried about corruption, you might consider testing for it with the cksum command or adding a limited amount of redundancy back into your compressed data with a tool such as parchive or ras.

lzop often is the fastest tool. It finishes about three times faster than gzip but still compresses data almost as much. It finishes about a hundred times faster than lzma and 7za. Furthermore, lzop occasionally decompresses data even faster than simply copying it! Use lzop on the command line as a filter with the backup tool named tar:

$ tar c a/dir | lzop - > backup.tar.lzo

tar's c option tells it to create one big archive from the files in a/dir. The | is a shell command that automatically pipes tar's output into lzop's input. The - tells lzop to read from its standard input, and the > is a shell command that redirects lzop's output to a file named backup.tar.lzo.

You can restore with:

$ lzop -dc backup.tar.lzo | tar x

The d and c options tell lzop to decompress and write to standard output, respectively. tar's x option tells it to extract the original files from the archive.

Although lzop is impressive, you can get even higher compression ratios—much higher! Here's how. Combine a little-known data compression tool named lzma with tar to increase storage space effectively by 400%. Here's how you would use it to back up:

$ tar c a/dir | lzma -x -s26 > backup.tar.lzma

lzma's -x option tells it to compress more, and its -s option tells it how big of a dictionary to use.

You can restore with:

$ cat backup.tar.lzma | lzma -d | tar x

The -d option tells lzma to decompress. You need patience to increase storage by 400%; lzma takes about 40 times as long as gzip. In other words, that one-hour gzip backup might take all day with lzma.

This version of lzma is the hardest compressor to find. Make sure you get the one that acts as a filter. See Resources for its two locations.

The data compression tool with the best trade-off between speed and compression ratio is rzip. With compression level 0, rzip finishes about 400% faster than gzip and compacts data 70% more. rzip accomplishes this feat by using more working memory. Whereas gzip uses only 32 kilobytes of working memory during compression, rzip can use up to 900 megabytes, but that's okay because memory is getting cheaper and cheaper.

Here's the big but: rzip doesn't work as a filter—yet. Unless your data already is in one file, you temporarily need some extra disk space for a tar archive. If you want a good project to work on that would shake up the Linux world, enhance rzip to work as a filter. Until then, rzip is a particularly good option for squeezing a lot of data onto CDs or DVDs, because it performs well and you can use your hard drive for the temporary tar file.

Here's how to back up with rzip:

$ tar cf dir.tar a/dir
$ rzip -0 dir.tar

The -0 option says to use compression level 0. Unless you use rzip's -k option, it automatically deletes the input file, which in this case is the tar archive. Make sure you use -k if you want to keep the original file.

rzipped tar archives can be restored with:

$ rzip -d dir.tar.rz
$ tar xf dir.tar

rzip's default compression level is another top performer. It can increase your effective disk space by 375% but in only about a fifth of the time lzma can take. Using it is almost exactly the same as the example above; simply omit compression level -0.

Data compression also can speed up network transfers. How much depends on how fast your CPU and network are. Slow networks with fast CPUs can be sped up the most by thoroughly compressing the data. Alternatively, slow CPUs with fast connections do best with no compression.

Find the best compressor and compression level for your hardware in the graph shown in Figure 6. This graph's CPU and network speed axes are scaled logarithmically too. Look where your CPU and network speeds intersect in the graph, and try the data compression tool and compression level at that point. It also should give you a sense of how much your bandwidth may increase.

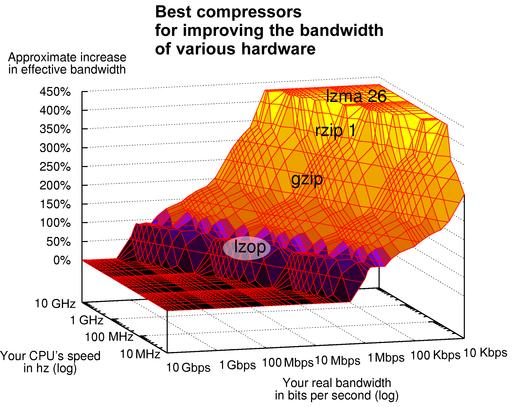

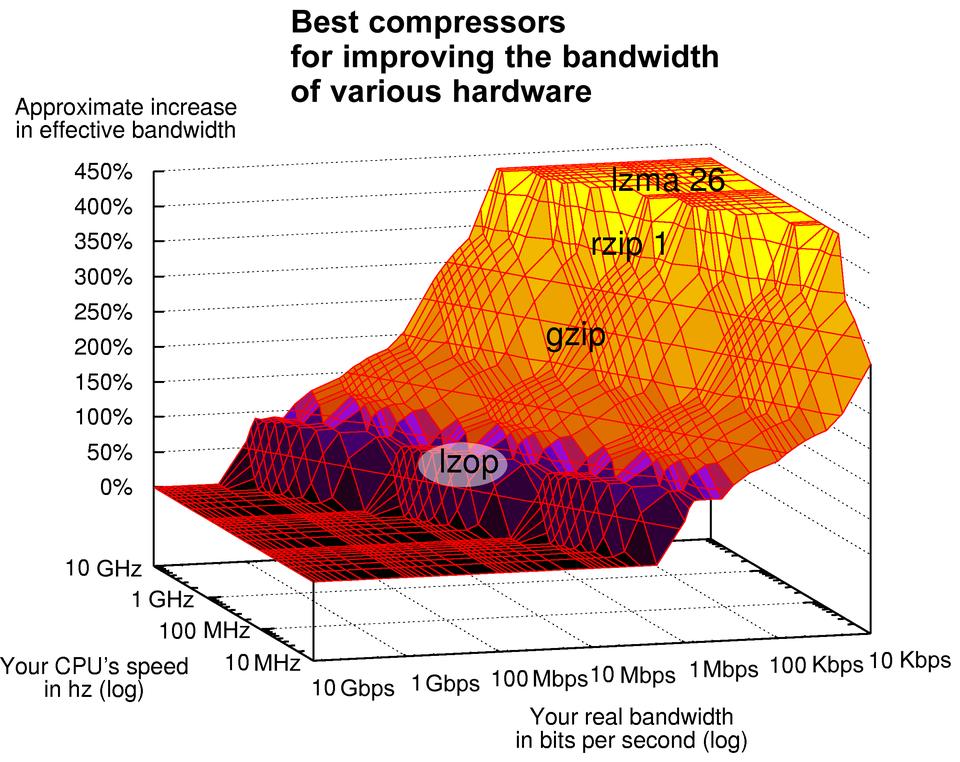

Figure 6. Best Compressors for Improving the Bandwidth of Various Hardware

For example, if you have a 56Kbps dial-up modem and a 3GHz CPU, their speeds intersect in the light-yellow region labeled lzma 26 at the top of the graph. This corresponds to using lzma with a 2²⁶ size dictionary. The graph predicts a 430% increase in effective bandwidth.

On the other hand, if you have a 1GHz network, but only a 100MHz CPU, it should be faster simply to send the raw uncompressed data. This is depicted in the flat black region at the bottom of the graph.

Don't assume that you always should increase performance the most by using lzma, however. The best compression tool for data transfers depends on the ratio of your particular CPU's speed to your particular network's speed.

If the sending and receiving computers have different CPU speeds, try looking up the sending computer's speed in the graph. Compression can be much more CPU-intensive. Check whether the data compression tool and scp are installed on both computers. Remember to replace user@box.com and file with the real names.

For the fastest CPUs and/or slowest network connections that fall in the graph's light-yellow region, speed up your network transfers like this:

$ cat file \
| lzma -x -s26 \
| ssh user@box.com "lzma -d > file"

ssh stands for secure shell. It's a safe way to execute commands on remote computers. This may speed up your network transfer by more than 400%.

For fast CPUs and/or slow networks that fall into the graph's dark-yellow zone, use rzip with a compression level of one. Because rzip doesn't work as a filter, you need temporary space for the compressed file on the originating box:

$ rzip -1 -k file
$ scp file.rz user@box.com:
$ ssh user@box.com "rzip -d file.rz"

The -1 tells rzip to use compression level 1, and the -k tells it to keep its input file. Remember to use a : at the end of the scp command.

rzipped network transfers can be 375% faster. That one-hour transfer might finish in only 16 minutes!

For slightly slower CPUs and/or faster networks that fall in the graph's orange region, try using gzip with compression level 1. Here's how:

$ gzip -1c file | ssh user@box.com "gzip -d > file"

It might double your effective bandwidth. -1c tells gzip to use compression level 1 and write to standard output, and -d tells it to decompress.

For fast network connections and slow CPUs falling in the graph's blue region, quickly compress a little with lzop at compression level 1:

$ lzop -1c file | ssh user@box.com "lzop -d > file"

The -1c tells lzop to use compression level 1 and to write to standard output. -d tells it to decompress. Even with this minimal compression, you still might increase your hardware's effective bandwidth by 75%.

For network connections and CPUs falling in the graph's black region, don't compress at all. Simply send it.

Resources for this article: /article/8403.
