Using Linux for Logic

I've covered tons of different scientific applications you can run on your computer to do rather complex calculations, but so far, I've not really given much thought to the hardware on which this software runs. So in this article, I take a look at a software package that lets you dive deep down to the level of the logic gates used to build up computational units.

At a certain point, you may find yourself asking your hardware to do too much work. In those cases, you need to understand what your hardware is and how it works. So, let's start by looking at the lowest level: the lowly logic gate. To that end, let's use a software package named Logisim in order to play with logic gates in various groupings.

Logisim should be available in most distributions' package management systems. For example, in Debian-based distros, install it with the following command:


sudo apt-get install logisim

You then can start it from your desktop environment's menu, or you can open a terminal, type logisim and press Enter. You should see a main section of the application where you can start to design your logic circuit. On the left-hand side, there's a selection pane with all of the units you can use for your design, including basic elements like wires and logic gates, and more complex units like memory or arithmetic units.

Logisim

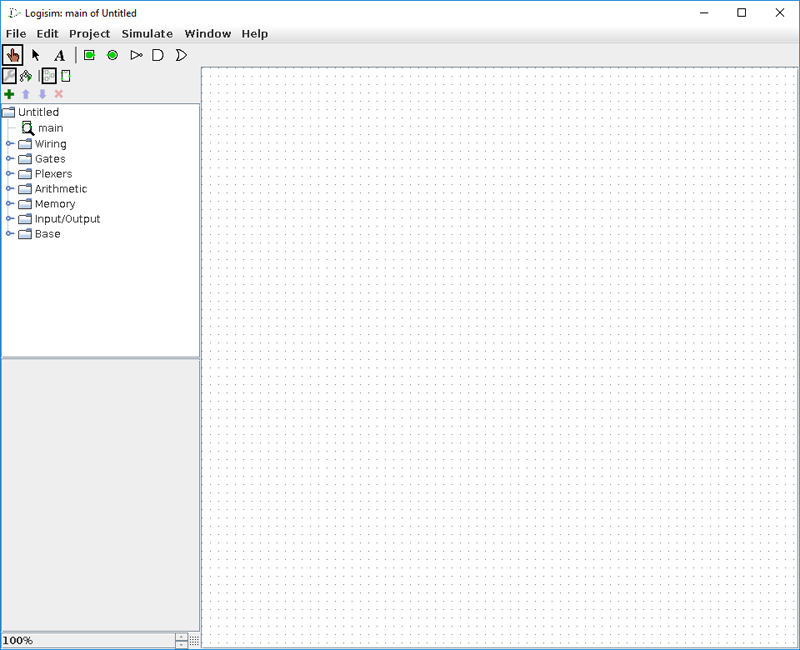

Figure 1. When you first start Logisim, you get a blank project where you can start to design your first logic circuit.

To learn how to start using Logisim, let's look at how to set up one of the most basic logic circuits: an AND gate.

Circuit Model

Figure 2. You easily can add logic gates to your circuit to model computations.

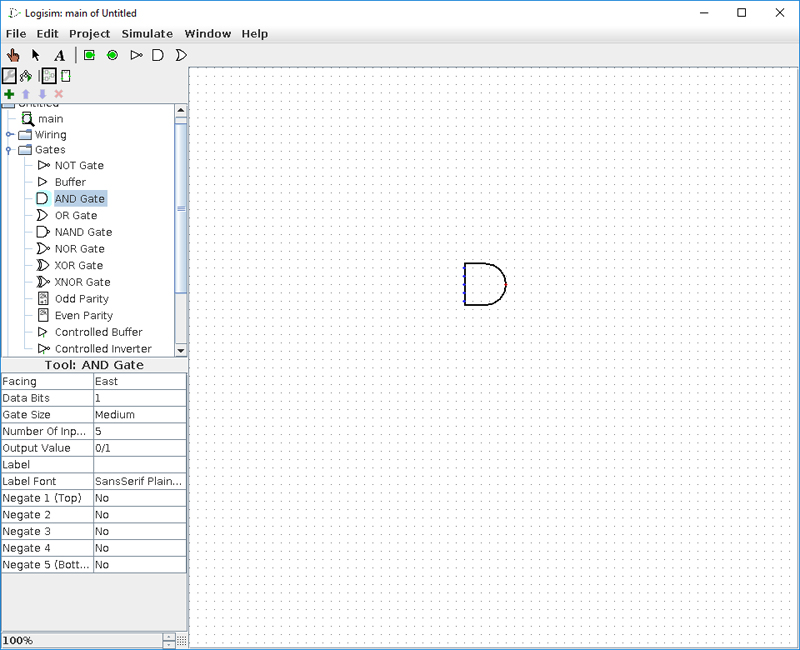

If you click the Gates entry on the left-hand side, you'll see a full list of available logic gates. Clicking the AND gate allows you to add them to the design pane by clicking on the location where you want them added. At the bottom of the left-hand side, you'll see a pane that displays the attributes of the selected gate. You can use this pane to edit those attributes to make the gate behave exactly the way you want. For this example, let's change the number of inputs value from 5 to 2. The next step is to add an output pin in order to see when the output is either 1 or 0. You can find pins in the wiring section.

On the front side of the AND gate, you'll want to add pins so you can control input. In the attributes for each of the pins, you'll see that you can change whether the pin is supposed to be an output pin. You also can set whether the pin is supposed to be a three-state pin.

The last step is to connect all of these pieces by simply clicking and dragging between the separate components.

Logic Circuit

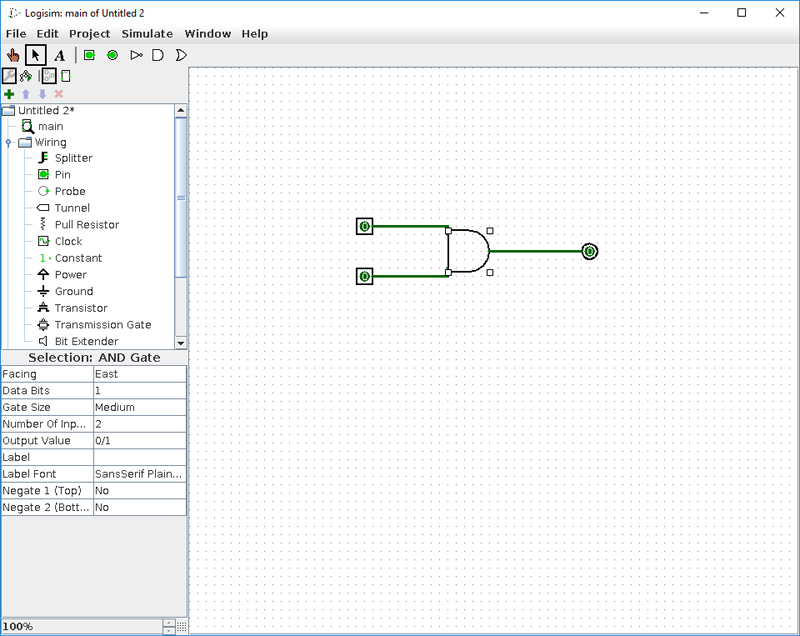

Figure 3. You can add extra items, like inputs and outputs, to your logic circuit.

By default, the input pins currently are set to 0, so once the wires are connected, you should see that the output is set to 0. In order to toggle the input pins, you first need to select the toggle tool from the toolbar at the top of the window (the one shaped like a pointing hand). Once you have selected this tool, you can click on the input pins to change their states. Once both inputs are set to 1, you should see the output flip to 1 also.

While you can build your circuits up from first principles and see how they behave, Logisim also lets you define the behavior first and generate a circuit that gives you the defined behavior. Clicking the Window→Combinational Analysis menu item pops up a new window where you can do exactly that.

Generate a ciruit

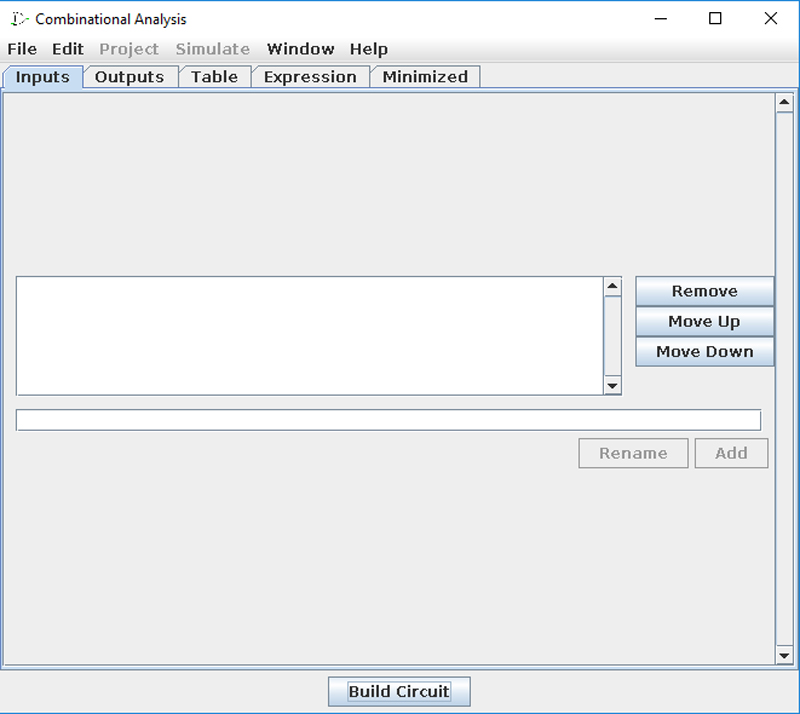

Figure 4. You can build up your logic circuits in reverse by defining the behavior you wanted first, then allowing it to generate a circuit that gives you this required behavior.

The first step is to provide a list of inputs. You simply add a series of labels, one for each input. For this example, you'll define an x, y and z. Next, you'll need to click the outputs tab and do the same for the number of outputs you want to model. Let's just define a single output for this example.

The last step is actually to define the behavior linking the inputs to the outputs. This is done through a logic table. So here, you'll have the output as 0, unless either x and z or y and z are high.

Logisim Circuits

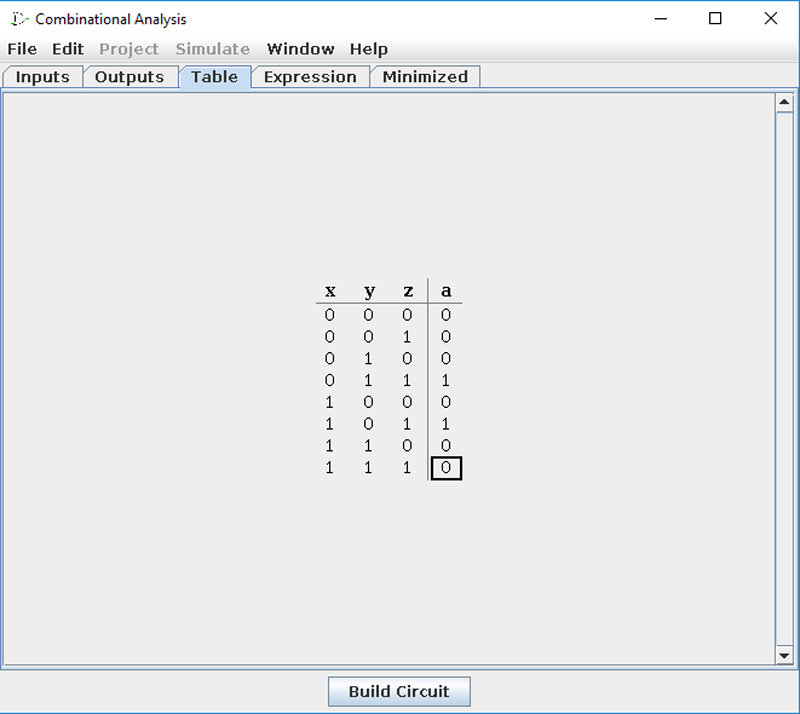

Figure 5. Logisim includes a tool that allows you to generate logic circuits based on a truth table that you define to handle the computation you're interested in modeling.

Once you're happy with the definition, click the Build Circuit button at the bottom of the window. This pops up a new dialog window where you can define the name and select the destination project, as well as choosing whether to use only NAND gates or only 2-input gates.

Combinational Analysis window

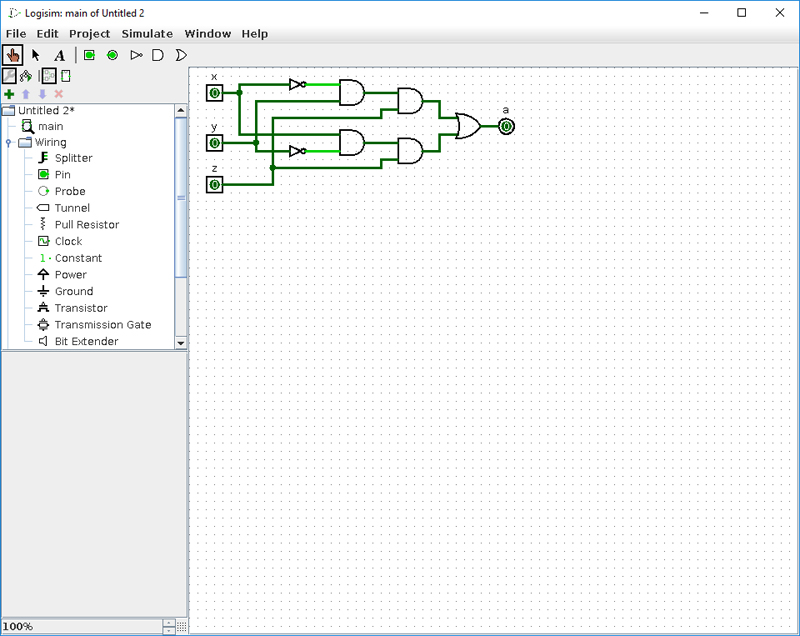

Figure 6. By using the Combinational Analysis window, you can create more complex circuits based purely on their expected behavior.

You can click on the inputs to toggle them and verify that everything behaves as you had planned. The Combinational Analysis window has two other tabs: Expression and Minimized. The Expression tab shows you the logical mathematical expression that describes the truth table you defined. You can edit your circuit further by editing this equation directly. The minimized tab gives you the logical equation as either the sum of products or the product of sums.

Once you finish your circuit, you can save it in a .circ file. These files define a complete circuit that can be reused as a single unit. When you do want to reuse them in a larger, more complex circuit, click Project→Load Library→Logisim Library and select the saved file. This allows you to build up very complicated computing circuits rather quickly.

You also can export the circuit itself by clicking File→Export Image. This allows you to save the circuit as an image that you can use in a report or some other process.

This is just a brief introduction, but I hope Logisim helps you learn a bit more about the fundamentals of computing and logical structures.
