4.3. Filters and Writers

At this point, I want to diverge from the beaten path. So far, I've detailed everything that's in a "standard" SAX application, from the reader to the callbacks to the handlers. However, there are a lot of additional features in SAX that can really turn you into a power developer, and take you beyond the confines of "standard" SAX. In this section, I'll introduce you to two of these: SAX filters and writers. Using classes both in the standard SAX distribution and available separately from the SAX web site (http://www.megginson.com/SAX), you can add some fairly advanced behavior to your SAX applications. This will also get you in the mindset of using SAX as a pipeline of events, rather than a single layer of processing. I'll explain this concept in more detail, but suffice it to say that it really is the key to writing efficient and modular SAX code.

4.3.1. XMLFilters

First on the list is a class that comes in the basic SAX download from David Megginson's site, and should be included with any parser distribution supporting SAX 2.0. The class in question here is org.xml.sax.XMLFilter. This class extends the XMLReader interface, and adds two new methods to that class:

public void setParent(XMLReader parent);

public XMLReader getParent( );

It might not seem like there is much to say here; what's the big deal, right? Well, by allowing a hierarchy of XMLReaders through this filtering mechanism, you can build up a processing chain, or pipeline, of events. To understand what I mean by a pipeline, here's the normal flow of a SAX parse:

What developers started realizing, though, is that it is simple to insert one or more additional links into this chain:

It's the middle steps that introduce a pipeline, where one reader that performed specific processing passes its information on to another reader, repeatedly, instead of having to lump all code into one reader. When this pipeline is set up with multiple readers, modular and efficient programming results. And that's what the XMLFilter class allows for: chaining of XMLReader implementations through filtering. Enhancing this even further is the class org.xml.sax.helpers.XMLFilterImpl , which provides a helpful implementation of XMLFilter. It is the convergence of an XMLFilter and the DefaultHandler class I showed you in the last section; the XMLFilterImpl class implements XMLFilter, ContentHandler, ErrorHandler, EntityResolver, and DTDHandler, providing pass-through versions of each method of each handler. In other words, it sets up a pipeline for all SAX events, allowing your code to override any methods that need to insert processing into the pipeline.

Let's use one of these filters. Example 4-5 is a working, ready-to-use filter. You're past the basics, so we will move through this rapidly.

Example 4-5. NamespaceFilter class

package javaxml2;

import org.xml.sax.Attributes;
import org.xml.sax.SAXException;
import org.xml.sax.XMLReader;
import org.xml.sax.helpers.XMLFilterImpl;

public class NamespaceFilter extends XMLFilterImpl {

    /** The old URI, to replace */
    private String oldURI;

    /** The new URI, to replace the old URI with */
    private String newURI;

    public NamespaceFilter(XMLReader reader,
                           String oldURI, String newURI) {
        super(reader);
        this.oldURI = oldURI;
        this.newURI = newURI;
    }

    public void startPrefixMapping(String prefix, String uri)
        throws SAXException {

        // Change URI, if needed
        if (uri.equals(oldURI)) {
            super.startPrefixMapping(prefix, newURI);
        } else {
            super.startPrefixMapping(prefix, uri);
        }
    }

    public void startElement(String uri, String localName,
                             String qName, Attributes attributes)
        throws SAXException {

        // Change URI, if needed
        if (uri.equals(oldURI)) {
            super.startElement(newURI, localName, qName, attributes);
        } else {
            super.startElement(uri, localName, qName, attributes);
        }
    }

    public void endElement(String uri, String localName, String qName)
        throws SAXException {

        // Change URI, if needed
        if (uri.equals(oldURI)) {
            super.endElement(newURI, localName, qName);
        } else {
            super.endElement(uri, localName, qName);
        }
    }
}

I start out by extending XMLFilterImpl, so I don't have to worry about any events that I don't explicitly need to change; the XMLFilterImpl class takes care of them by passing on all events unchanged unless a method is overridden. I can get down to the business of what I want the filter to do; in this case, that's changing a namespace URI from one to another. If this task seems trivial, don't underestimate its usefulness. Many times in the last several years, the URI of a namespace for a specification (such as XML Schema or XSLT) has changed. Rather than having to hand-edit all of my XML documents or write code for XML that I receive, this NamespaceFilter takes care of the problem for me.

Passing an XMLReader instance to the constructor sets that reader as its parent, so the parent reader receives any events passed on from the filter (which is all events, by virtue of the XMLFilterImpl class, unless the NamespaceFilter class overrides that behavior). By supplying two URIs, the original and the URI to replace it with, you set this filter up. The three overridden methods handle any needed interchanging of that URI. Once you have a filter like this in place, you supply a reader to it, and then operate upon the filter, not the reader. Going back to contents.xml and SAXTreeViewer, suppose that O'Reilly has informed me that my book's online URL is no longer http://www.oreilly.com/javaxml2, but http://www.oreilly.com/catalog/javaxml2. Rather than editing all my XML samples and uploading them, I can just use the NamespaceFilter class:

    public void buildTree(DefaultTreeModel treeModel,
                          DefaultMutableTreeNode base, String xmlURI)
        throws IOException, SAXException {

        // Create instances needed for parsing
        XMLReader reader =
            XMLReaderFactory.createXMLReader(vendorParserClass);
        NamespaceFilter filter =
            new NamespaceFilter(reader,
                "http://www.oreilly.com/javaxml2",
                "http://www.oreilly.com/catalog/javaxml2");
        ContentHandler jTreeContentHandler =
            new JTreeContentHandler(treeModel, base, reader);
        ErrorHandler jTreeErrorHandler = new JTreeErrorHandler( );

        // Register content handler
        filter.setContentHandler(jTreeContentHandler);

        // Register error handler
        filter.setErrorHandler(jTreeErrorHandler);

        // Register entity resolver
        filter.setEntityResolver(new SimpleEntityResolver( ));

        // Parse
        InputSource inputSource =
            new InputSource(xmlURI);
        filter.parse(inputSource);
    }

Notice, as I said, that all operation occurs upon the filter, not the reader instance. With this filtering in place, you can compile both source files (NamespaceFilter.java and SAXTreeViewer.java), and run the viewer on the contents.xml file. You'll see that the O'Reilly namespace URI for my book is changed in every occurrence, shown in Figure 4-2.

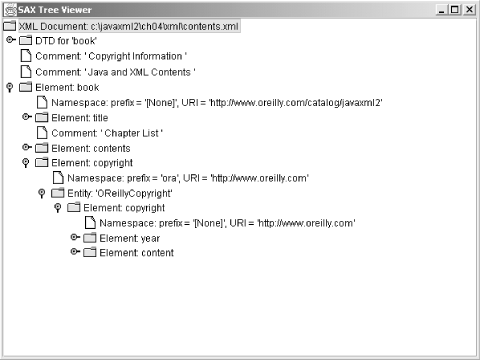

Figure 4-2

Figure 4-2. SAXTreeViewer on contents.xml with NamespaceFilter in place

Of course, you can chain these filters together as well, and use them as standard libraries. When I'm dealing with older XML documents, I often create several of these with old XSL and XML Schema URIs and put them in place so I don't have to worry about incorrect URIs:

        XMLReader reader =
            XMLReaderFactory.createXMLReader(vendorParserClass);
        NamespaceFilter xslFilter =
            new NamespaceFilter(reader,
                "http://www.w3.org/TR/XSL",
                "http://www.w3.org/1999/XSL/Transform");
        NamespaceFilter xsdFilter =
            new NamespaceFilter(xslFilter,
                "http://www.w3.org/TR/XMLSchema",
                "http://www.w3.org/2001/XMLSchema");

Here, I'm building a longer pipeline to ensure that no old namespace URIs sneak by and cause my applications any trouble. Be careful not to build too long a pipeline; each new link in the chain adds some processing time. All the same, this is a great way to build reusable components for SAX.

4.3.2. XMLWriter

Now that you understand how filters work in SAX, I want to introduce you to a specific filter, XMLWriter . This class, as well as a subclass of it, DataWriter , can be downloaded from David Megginson's SAX site at http://www.megginson.com/SAX. XMLWriter extends XMLFilterImpl, and DataWriter extends XMLWriter. Both of these filter classes are used to output XML, which may seem a bit at odds with what you've learned so far about SAX. However, just as you could insert statements that output to Java Writers in SAX callbacks, so can this class. I'm not going to spend a lot of time on this class, because it's not really the way you want to be outputting XML in the general sense; it's much better to use DOM, JDOM, or another XML API if you want mutability. However, the XMLWriter class offers a valuable way to inspect what's going on in a SAX pipeline. By inserting it between other filters and readers in your pipeline, it can be used to output a snapshot of your data at whatever point it resides in your processing chain. For example, in the case where I'm changing namespace URIs, it might be that you want to actually store the XML document with the new namespace URI (be it a modified O'Reilly URI, a updated XSL one, or the XML Schema one) for later use. This becomes a piece of cake by using the XMLWriter class. Since you've already got SAXTreeViewer using the NamespaceFilter, I'll use that as an example. First, add import statements for java.io.Writer (for output), and the com.megginson.sax.XMLWriter class. Once that's in place, you'll need to insert an instance of XMLWriter between the NamespaceFilter and the XMLReader instances; this means output will occur after namespaces have been changed but before the visual events occur. Change your code as shown here:

    public void buildTree(DefaultTreeModel treeModel,
                          DefaultMutableTreeNode base, String xmlURI)
        throws IOException, SAXException {

        // Create instances needed for parsing
        XMLReader reader =
            XMLReaderFactory.createXMLReader(vendorParserClass);
        XMLWriter writer =
            new XMLWriter(reader, new FileWriter("snapshot.xml"));
        NamespaceFilter filter =
            new NamespaceFilter(writer,
                "http://www.oreilly.com/javaxml2",
                "http://www.oreilly.com/catalog/javaxml2");
        ContentHandler jTreeContentHandler =
            new JTreeContentHandler(treeModel, base, reader);
        ErrorHandler jTreeErrorHandler = new JTreeErrorHandler( );

        // Register content handler
        filter.setContentHandler(jTreeContentHandler);

        // Register error handler
        filter.setErrorHandler(jTreeErrorHandler);

        // Register entity resolver
        filter.setEntityResolver(new SimpleEntityResolver( ));

        // Parse
        InputSource inputSource =
            new InputSource(xmlURI);
        filter.parse(inputSource);
    }

Be sure you set the parent of the NamespaceFilter instance to be the XMLWriter, not the XMLReader. Otherwise, no output will actually occur. Once you've got these changes compiled in, run the example. You should get a snapshot.xml file created in the directory you're running the example from; an excerpt from that document is shown here:

<?xml version="1.0" standalone="yes"?>

<book xmlns="http://www.oreilly.com/catalog/javaxml2">
  <title ora:series="Java"
         xmlns:ora="http://www.oreilly.com">Java and XML</title>


  <contents>
    <chapter title="Introduction" number="1">
      <topic name="XML Matters"></topic>
      <topic name="What's Important"></topic>
      <topic name="The Essentials"></topic>
      <topic name="What's Next?"></topic>
    </chapter>
    <chapter title="Nuts and Bolts" number="2">
      <topic name="The Basics"></topic>
      <topic name="Constraints"></topic>
      <topic name="Transformations"></topic>
      <topic name="And More..."></topic>
      <topic name="What's Next?"></topic>
    </chapter>
    <!-- Other content... -->

  </contents>
</book>

Notice that the namespace, as changed by NamespaceFilter, is modified here. Snapshots like this, created by XMLWriter instances, can be great tools for debugging and logging of SAX events.

Both XMLWriter and DataWriter offer a lot more in terms of methods to output XML, both in full and in part, and you should check out the Javadoc included with the downloaded package. I do not encourage you to use these classes for general output. In my experience, they are most useful in the case demonstrated here.
