5.3.5.1. The approach

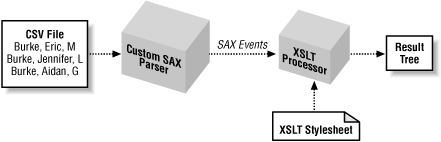

Figure 5-4. Custom SAX parser

In this model, the XSLT processor interprets the SAX events as XML data and uses a normal stylesheet to perform the transformation. The interesting aspect of this model is that we can easily write custom SAX parsers for other file formats, making XSLT a useful transformation language for just about any legacy application data.

In SAX, org.xml.sax.XMLReader is a standard interface that parsers must implement. It works in conjunction with org.xml.sax.ContentHandler, which is the interface that listens to SAX events. For this model to work, your XSLT processor must implement the ContentHandler interface so it can listen to the SAX events that the XMLReader generates. In the case of JAXP, javax.xml.transform.sax.TransformerHandler is used for this purpose.

Obtaining an instance of TransformerHandler requires a few extra programming steps. First, create a TransformerFactory as usual:

TransformerFactory transFact = TransformerFactory.newInstance( );

As before, the TransformerFactory is the JAXP abstraction to some underlying XSLT processor. This underlying processor may not support SAX features, so you have to query it to determine if you can proceed:

if (transFact.getFeature(SAXTransformerFactory.FEATURE)) {

If this returns false, you are out of luck. Otherwise, you can safely downcast to a SAXTransformerFactory and construct the TransformerHandler instance:

SAXTransformerFactory saxTransFact =
            (SAXTransformerFactory) transFact;
  // create a ContentHandler, don't specify a stylesheet.  Without
  // a stylesheet, raw XML is sent to the output.
  TransformerHandler transHand = saxTransFact.newTransformerHandler( );

In the code shown here, a stylesheet was not specified. JAXP defaults to the identity transformation stylesheet, which means that the SAX events will be "transformed" into raw XML output. To specify a stylesheet that performs an actual transformation, pass a Source to the method as follows:

Source xsltSource = new StreamSource(myXsltSystemId);
TransformerHandler transHand = saxTransFact.newTransformerHandler(
        xsltSource);

5.3.5.2. Detailed CSV to SAX design

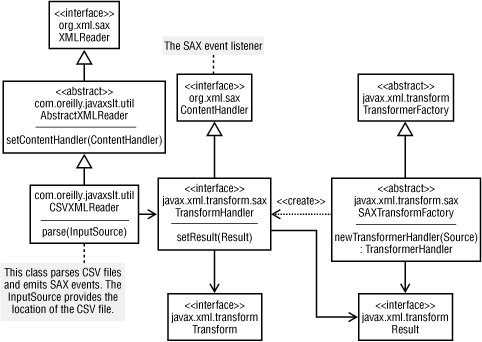

Figure 5-5. SAX and XSLT transformations

This diagram certainly appears to be more complex than previous approaches, but is similar in many ways. In previous approaches, we used the TransformerFactory to create instances of Transformer; in the SAX approach, we start with a subclass of TransformerFactory. Before any work can be done, you must verify that your particular implementation supports SAX-based transformations. The reference implementation of JAXP does support this, although other implementations are not required to do so. In the following code fragment, the getFeature method of TransformerFactory will return true if you can safely downcast to a SAXTransformerFactory instance:

TransformerFactory transFact = TransformerFactory.newInstance( );
if (transFact.getFeature(SAXTransformerFactory.FEATURE)) {
    // downcast is allowed
    SAXTransformerFactory saxTransFact = (SAXTransformerFactory) transFact;

If getFeature returns false, your only option is to look for an implementation that does support SAX-based transformations. Otherwise, you can proceed to create an instance of TransformerHandler:

TransformerHandler transHand = saxTransFact.newTransformerHandler(myXsltSource);

5.3.5.3. Writing the custom parser

Creating the subclass, CSVXMLReader, involves overriding the parse( ) method and actually scanning through the CSV file, emitting SAX events as elements in the file are encountered. While the SAX portion is very easy, parsing the CSV file is a little more challenging. To make this class as flexible as possible, it was designed to parse through any CSV file that a spreadsheet such as Microsoft Excel can export. For simple data, your CSV file might look like this:

Burke,Eric,M
Burke,Jennifer,L
Burke,Aidan,G

One enhancement would be to design the CSV parser so it could accept a list of meaningful column names as parameters, and these could be used in the XML that is generated. Another option would be to write an XSLT stylesheet that transformed this initial output into another form of XML that used meaningful column names. To keep the code example relatively manageable, these features were omitted from this implementation. But there are some complexities to the CSV file format that have to be considered. For example, fields that contain commas must be surrounded with quotes:

"Consultant,Author,Teacher",Burke,Eric,M
Teacher,Burke,Jennifer,L
None,Burke,Aidan,G

To further complicate matters, fields may also contain quotes ("). In this case, they are doubled up, much in the same way you use double backslash characters (\\) in Java to represent a single backslash. In the following example, the first column contains a single quote, so the entire field is quoted, and the single quote is doubled up:

"test""quote",Teacher,Burke,Jennifer,L

This would be interpreted as:

test"quote,Teacher,Burke,Jennifer,L

CSVXMLReader is a subclass of AbstractXMLReader, so it must provide an implementation of the abstract parse method:

public void parse(InputSource input) throws IOException,
            SAXException {
        // if no handler is registered to receive events, don't bother
        // to parse the CSV file
        ContentHandler ch = getContentHandler( );
        if (ch == null) {
            return;
        }

The first thing this method does is check for the existence of a SAX ContentHandler. The base class, AbstractXMLReader, provides access to this object, which is responsible for listening to the SAX events. In our example, an instance of JAXP's TransformerHandler is used as the SAX ContentHandler implementation. If this handler is not registered, our parse method simply returns because nobody is registered to listen to the events. In a real SAX parser, the XML would be parsed anyway, which provides an opportunity to check for errors in the XML data. Choosing to return immediately was merely a performance optimization selected for this class.

The SAX InputSource parameter allows our custom parser to locate the CSV file. Since an InputSource has many options for reading its data, parsers must check each potential source in the order shown here:

// convert the InputSource into a BufferedReader
BufferedReader br = null;
if (input.getCharacterStream( ) != null) {
    br = new BufferedReader(input.getCharacterStream( ));
} else if (input.getByteStream( ) != null) {
    br = new BufferedReader(new InputStreamReader(
            input.getByteStream( )));
} else if (input.getSystemId( ) != null) {
    java.net.URL url = new URL(input.getSystemId( ));
    br = new BufferedReader(new InputStreamReader(url.openStream( )));
} else {
    throw new SAXException("Invalid InputSource object");
}

Assuming that our InputSource was valid, we can now begin parsing the CSV file and emitting SAX events. The first step is to notify the ContentHandler that a new document has begun:

ch.startDocument( );

// emit <csvFile>
ch.startElement("","","csvFile",EMPTY_ATTR);

The XSLT processor interprets this to mean the following:

<?xml version="1.0" encoding="UTF-8"?>
<csvFile>

Our parser simply ignores many SAX 2 features, particularly XML namespaces. This is why many values passed as parameters to the various ContentHandler methods simply contain empty strings. The EMPTY_ATTR constant indicates that this XML element does not have any attributes.

The CSV file itself is very straightforward, so we merely loop over every line in the file, emitting SAX events as we read each line. The parseLine method is a private helper method that does the actual CSV parsing:

// read each line of the file until EOF is reached
String curLine = null;
while ((curLine = br.readLine( )) != null) {
    curLine = curLine.trim( );
    if (curLine.length( ) > 0) {
        // create the <line> element
        ch.startElement("","","line",EMPTY_ATTR);
        parseLine(curLine, ch);
        ch.endElement("","","line");
    }
}

And finally, we must indicate that the parsing is complete:

// emit </csvFile>
ch.endElement("","","csvFile");
ch.endDocument( );

The remaining methods in CSVXMLReader are not discussed in detail here because they are really just responsible for breaking down each line in the CSV file and checking for commas, quotes, and other mundane parsing tasks. One thing worth noting is the code that emits text, such as the following:

<value>Some Text Here</value>

SAX parsers use the characters method on ContentHandler to represent text, which has this signature:

public void characters(char[] ch, int start, int length)

Although this method could have been designed to take a String, using an array allows SAX parsers to preallocate a large character array and then reuse that buffer repeatedly. This is why an implementation of ContentHandler cannot simply assume that the entire ch array contains meaningful data. Instead, it must read only the specified number of characters beginning at the start position.

Our parser uses a relatively straightforward approach, simply converting a String to a character array and passing that as a parameter to the characters method:

// emit the <value>text</value> element
ch.startElement("","","value",EMPTY_ATTR);
ch.characters(firstToken.toCharArray(), 0, firstToken.length( ));
ch.endElement("","","value");

5.3.5.4. Using the parser

As mentioned earlier in this chapter, the TransformerHandler is provided by JAXP and is an implementation of the org.xml.sax.ContentHandler interface. It is constructed by the SAXTransformerFactory as follows:

TransformerHandler transHand = null;
if (xsltFileName == null) {
    transHand = saxTransFact.newTransformerHandler( );
} else {
    transHand = saxTransFact.newTransformerHandler(
            new StreamSource(new File(xsltFileName)));
}

When the XSLT stylesheet is not specified, the transformer performs an identity transformation. This is useful when you just want to see the raw XML output without applying a stylesheet. You will probably want to do this first to see how your XSLT will need to be written. If a stylesheet is provided, however, it is used for the transformation.

The custom parser is then constructed as follows:

CSVXMLReader csvReader = new CSVXMLReader( );

The location of the CSV file is then converted into a SAX InputSource:

InputSource csvInputSrc = new InputSource(
        new FileReader(csvFileName));

And finally, the XSLT processor is attached to our custom parser. This is accomplished by registering the TransformerHandler as the ContentHandler on csvReader. A single call to the parse method causes the parsing and transformation to occur:

// attach the XSLT processor to the CSVXMLReader
csvReader.setContentHandler(transHand);
csvReader.parse(csvInputSrc);

For a simple test, assume that a list of presidents is available in CSV format:

Washington,George,,
Adams,John,,
Jefferson,Thomas,,
Madison,James,,
  etc...
Bush,George,Herbert,Walker
Clinton,William,Jefferson,
Bush,George,W,

To see what the XML looks like, invoke the program as follows:

java com.oreilly.javaxslt.util.SimpleCSVProcessor presidents.csv

This will parse the CSV file and apply the identity transformation stylesheet, sending the following output to the console:

<?xml version="1.0" encoding="UTF-8"?>
<csvFile>
  <line>
    <value>Washington</value>
    <value>George</value>
    <value/>
    <value/>
  </line>
  <line>
    etc...
</csvFile>

In order to apply this stylesheet, type the following command:

java com.oreilly.javaxslt.util.SimpleCSVProcessor presidents.csv csvToHTMLTable.xslt

As before, the results are sent to System.out and contain code for an HTML table. This stylesheet will work with any CSV file parsed with SimpleCSVProcessor, not just presidents.xml. Now that the concept has been proved, you can add fancy formatting and custom output to the resulting HTML without altering any Java code -- just edit the stylesheet or write a new one.

5.3.5.5. Conclusion

Although writing a SAX parser and connecting it to JAXP does involve quite a few interrelated classes, the resulting application requires only two command-line arguments and will work with any CSV or XSLT file. What makes this example interesting is that the same approach will work with essentially any data source. The steps are broken down as follows:

1. Create a custom SAX parser by implementing org.xml.sax.XMLReader or extending com.oreilly.javaxslt.util.AbstractXMLReader.

2. In your parser, emit the appropriate SAX events as you read your data.

3. Modify SimpleCSVProcessor to utilize your custom parser instead of CSVXMLReader.

5.3.6.1. JDOM to SAX approach

TransformerFactory transFact = TransformerFactory.newInstance( );
if (transFact.getFeature(SAXTransformerFactory.FEATURE)) {
    SAXTransformerFactory stf = (SAXTransformerFactory) transFact;
    // the 'stylesheet' parameter is an instance of JAXP's
    // javax.xml.transform.Templates interface
    TransformerHandler transHand = stf.newTransformerHandler(stylesheet);

    // result is a Result instance
    transHand.setResult(result);
    SAXOutputter saxOut = new SAXOutputter(transHand);
    // the 'jdomDoc' parameter is an instance of JDOM's
    // org.jdom.Document class. In contains the XML data
    saxOut.output(jdomDoc);
} else {
    System.err.println("SAXTransformerFactory is not supported");
}

5.3.6.2. JDOM to DOM approach

org.jdom.Document jdomDoc = createJDOMDocument( );
// add data to the JDOM Document
 ...

// convert the JDOM Document into a DOM Document
org.jdom.output.DOMOutputter domOut = new org.jdom.output.DOMOutputter(
        "org.jdom.adapters.CrimsonDOMAdapter");
org.w3c.dom.Document domDoc = domOut.output(jdomDoc);

The second line is highlighted because it is likely to give you the most problems. When JDOM converts its internal object tree into a DOM object tree, it must use some underlying DOM implementation. In many respects, JDOM is similar to JAXP because it delegates many tasks to underlying implementation classes. The DOMOutputter constructors are overloaded as follows:

// use the default adapter class
public DOMOutputter( )

// use the specified adapter class
public DOMOutputter(String adapterClass)

The first constructor shown here will use JDOM's default DOM parser, which is not necessarily the same DOM parser that JAXP uses. The second method allows you to specify the name of an adapter class, which must implement the org.jdom.adapters.DOMAdapter interface. JDOM includes standard adapters for all of the widely used DOM implementations, or you could write your own adapter class.

5.3.6.3. JDOM to text approach

StringWriter sw = new StringWriter( );
org.jdom.output.XMLOutputter xmlOut
        = new org.jdom.output.XMLOutputter("", false);
xmlOut.output(jdomDoc, sw);

The parameters for XMLOutputter allow you to specify the amount of indentation for the output along with a boolean flag indicating whether or not linefeeds should be included in the output. In the code example, no spaces or linefeeds are specified in order to minimize the size of the XML that is produced. Now that the StringWriter contains your XML, you can use a StringReader along with javax.xml.transform.stream.StreamSource to read the data into JAXP:

StringReader sr = new StringReader(sw.toString( ));
Source xmlSource = new javax.xml.transform.stream.StreamSource(sr);
